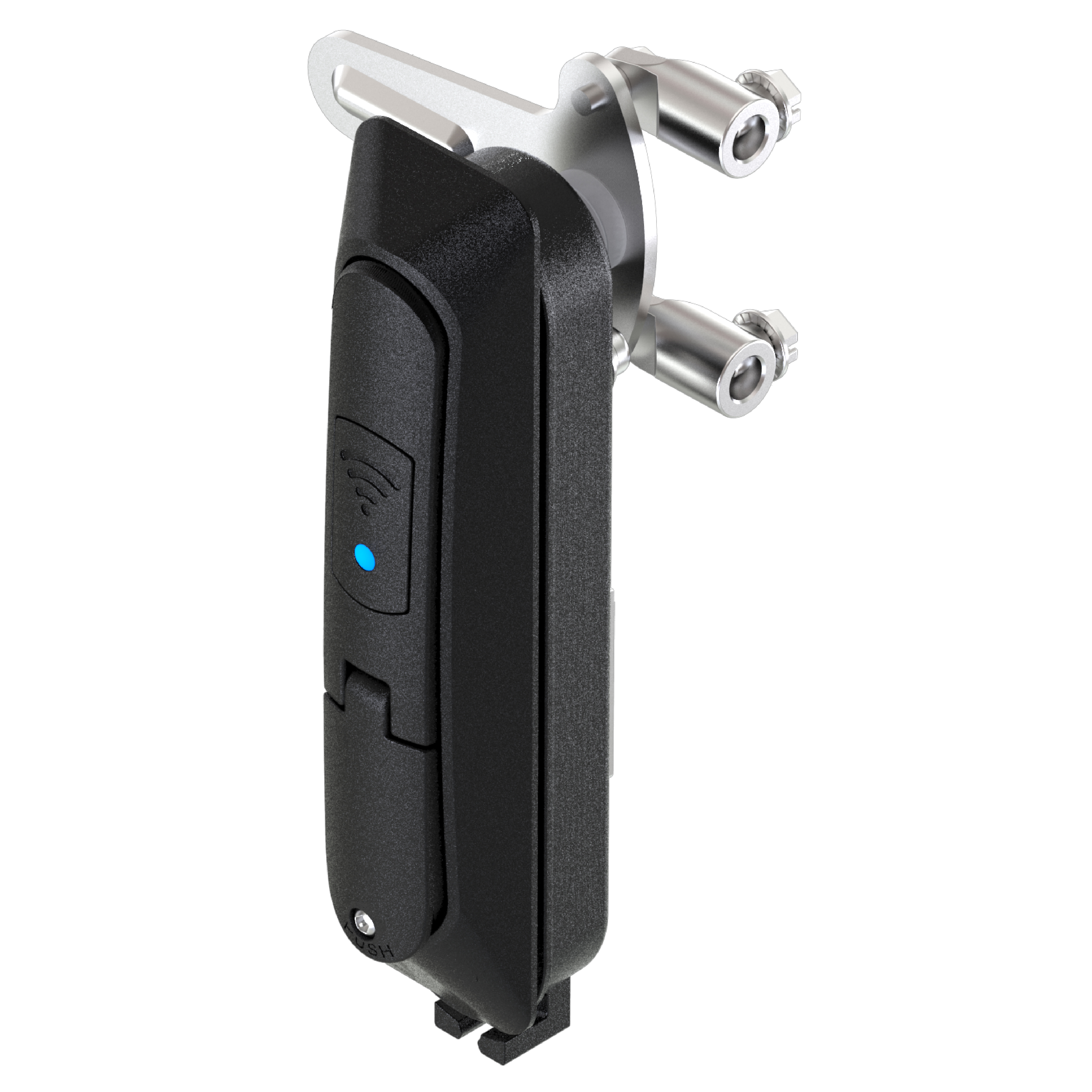

1505 Series Electronic Swinghandle
Outdoor Application,Outdoor IoT Lock,Telecom Electronic Swinghandle,Outdoor Electronic Swinghandle,1505-116-20,1505-1126-20,1505-R302-20,1505-1136-20,1505-11236-20
- Working Voltage： DC 12V
- Communication Method： RS485

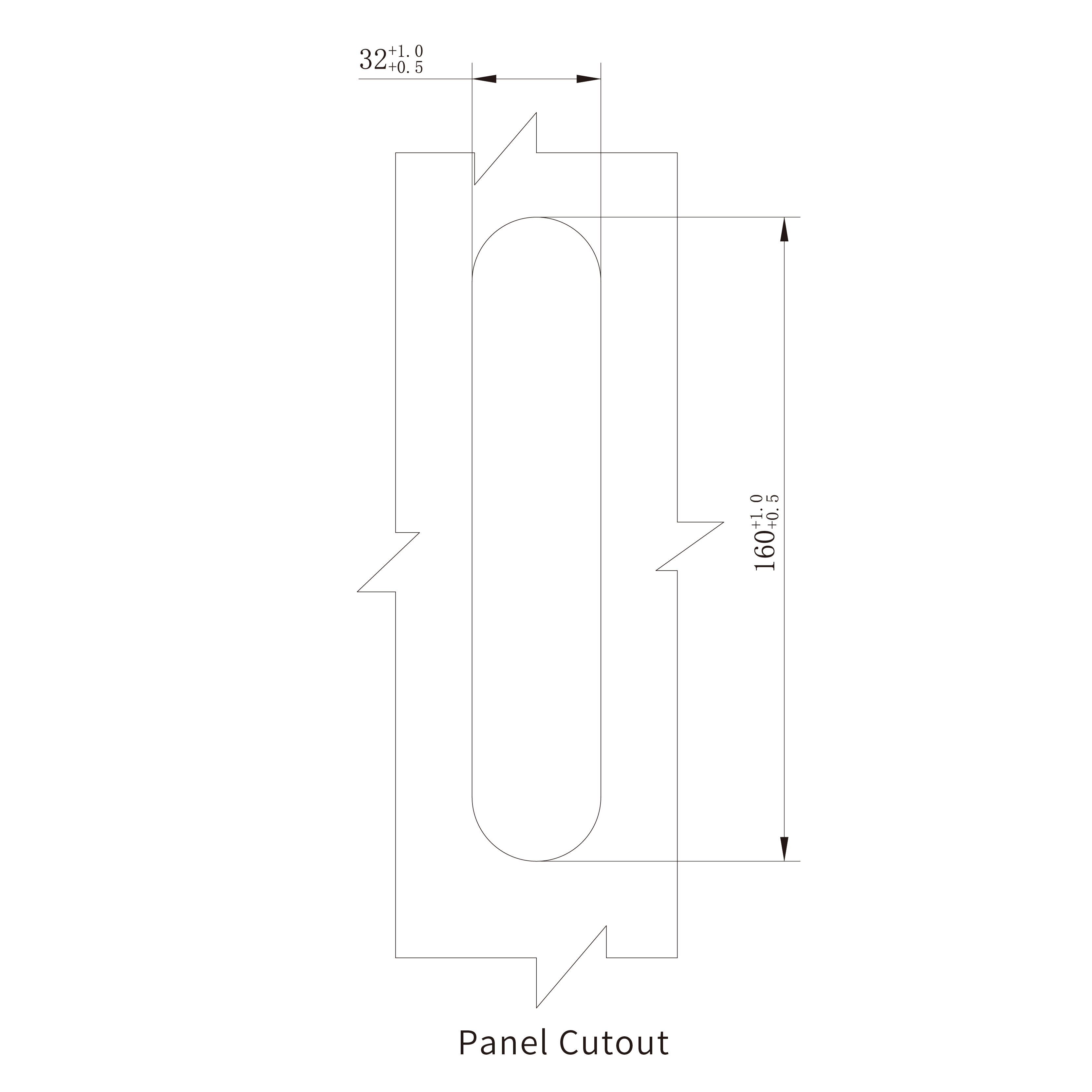

- Panel Cutout： 32*160
- Locking Type： Cam locking type
- IP Rating： IP65
-
Finish：
Zinc die base,Zinc die handle: Black textured powder coated
Q235 cam: Zinc plated
- Offline record storage function
- With DO, RS485, Wiegand communication protocol to meet different requirement
- Made of zinc die, with high strength and durability
- Higher IP Protection grade(IP65), with waterproof and dustproof
- Integrated bluebooth and card reading functions
- Integrated audible and visual feedback functions
- Zinc die Handle
- Zinc die Base
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet
1505 series electronic swinghandle product datasheet
| Access Method | Part Number | |
|---|---|---|
|
Mechanical key+Remote control | 1505-116-20 |
|
|
Mechanical key+Remote control+Card | 1505-1126-20 |
|
|
Mechanical key+Remote control+Bluetooth(scanning code) | 1505-1136-20 |
|
|
Mechanical key+Remote control+Card+Bluetooth(scanning code) | 1505-11236-20 |
|
|
Mechanical key+Remote control+Card | 1505-R302-20 |
Accessories
Associated Products
There are currently no associated products
