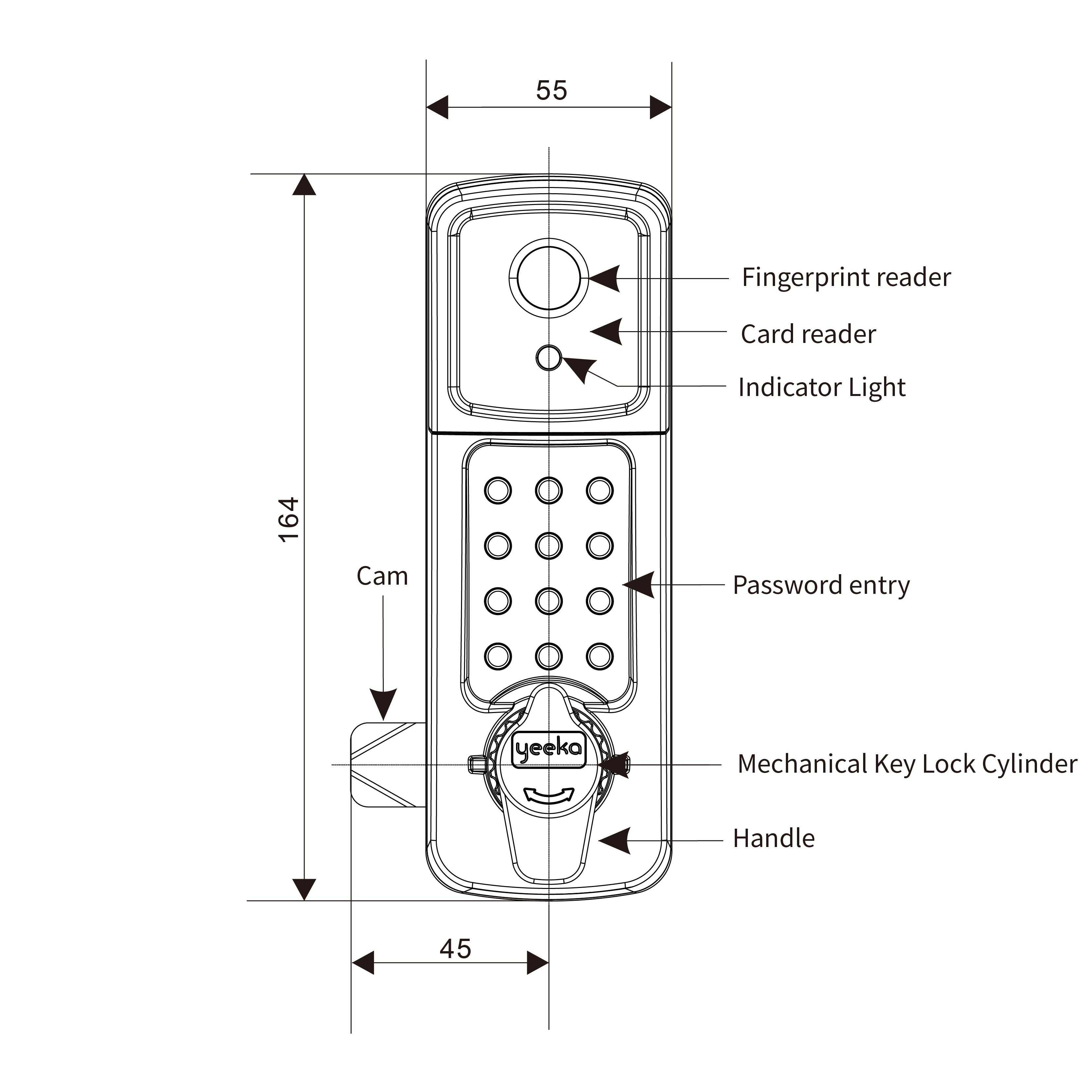

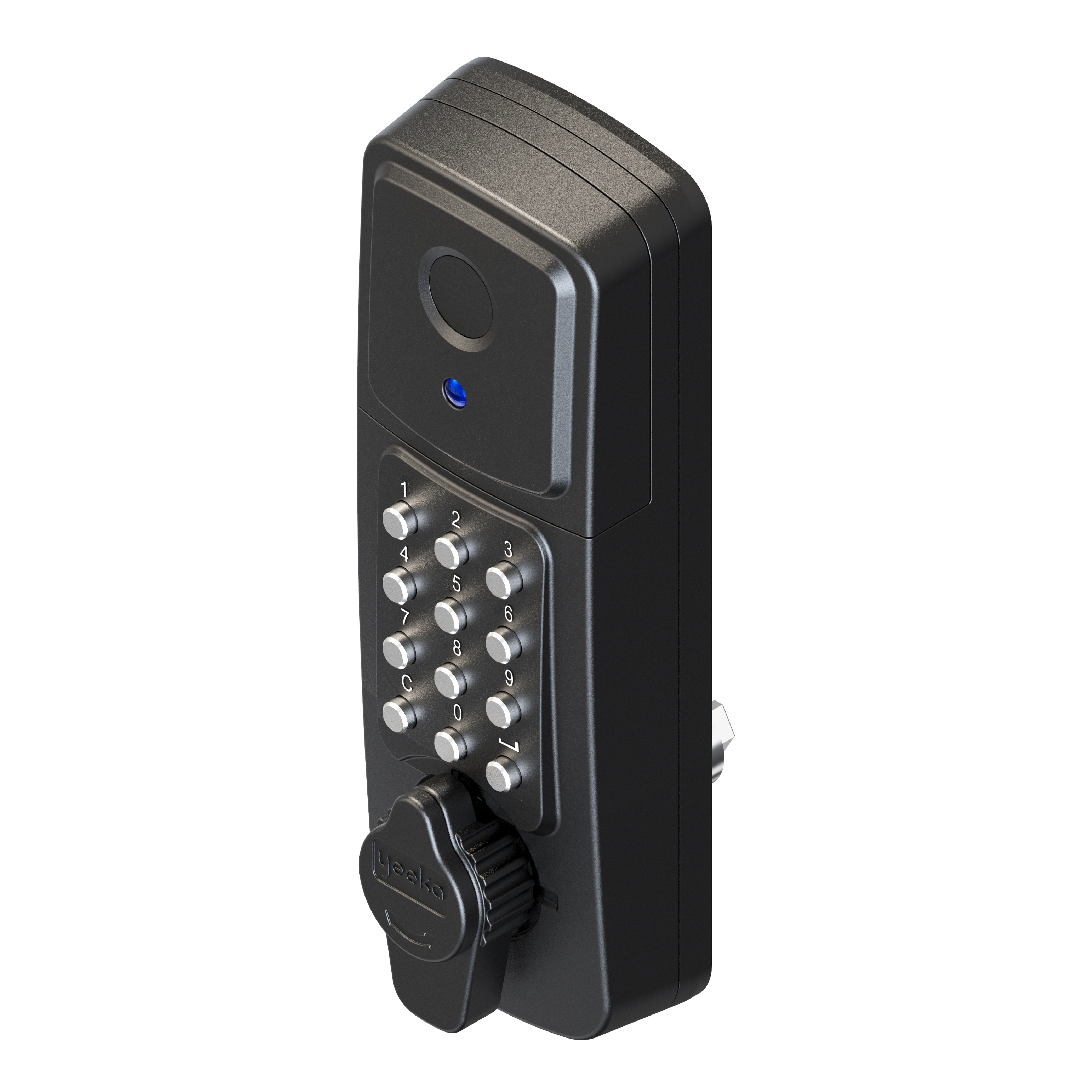

1517 Series Electronic Swinghandle
Outdoor Application,Outdoor IoT Lock,Telecom Electronic Swinghandle,Outdoor Electronic Swinghandle,1517-R201W-20,1517-R207W-20 Note: The fingerprint version must be used with a waterproof cover,1517-R217W-20,1517-R223W-20 Note: The fingerprint version must be used with a waterproof cover
- Working Voltage： DC 12V
- Communication Method： RS485

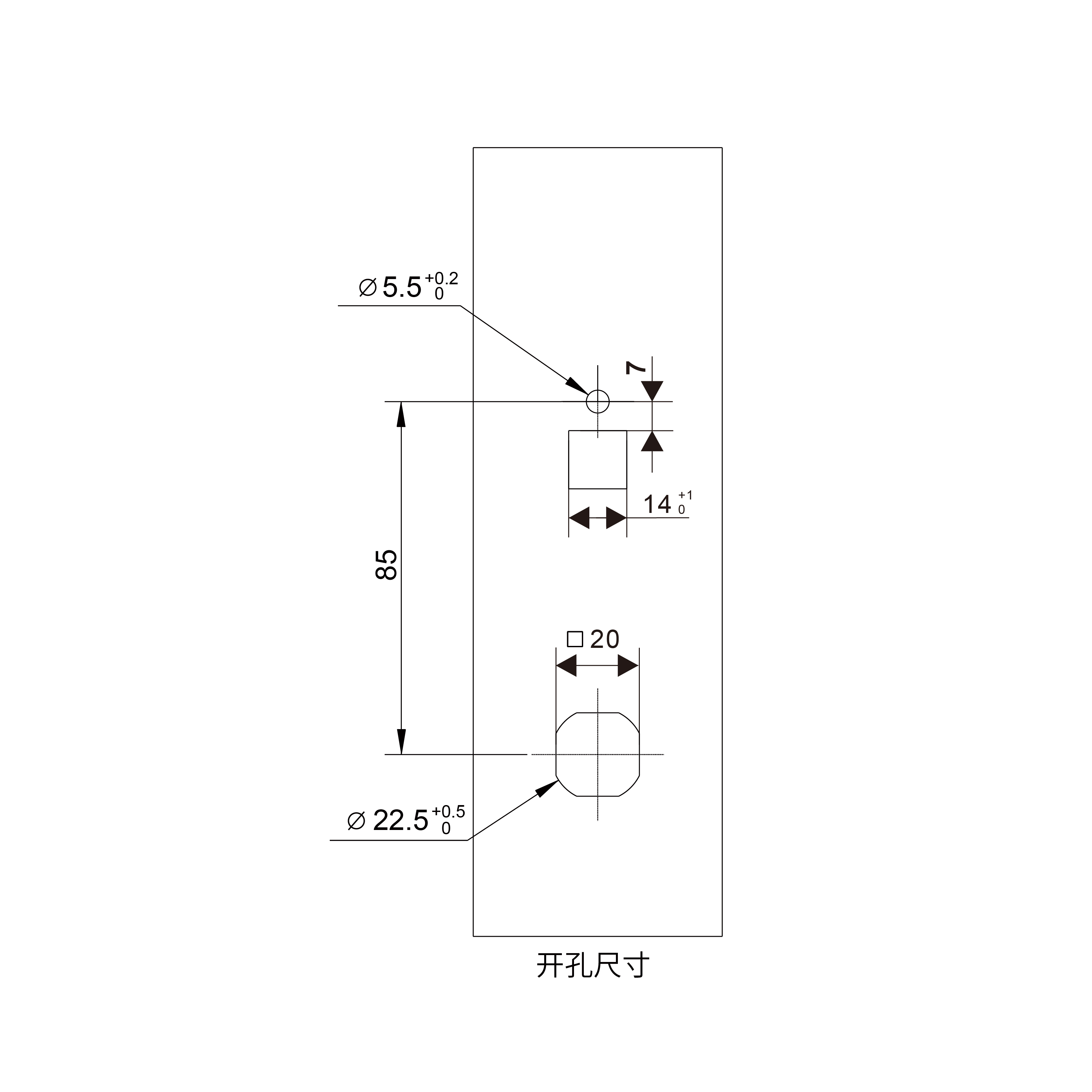

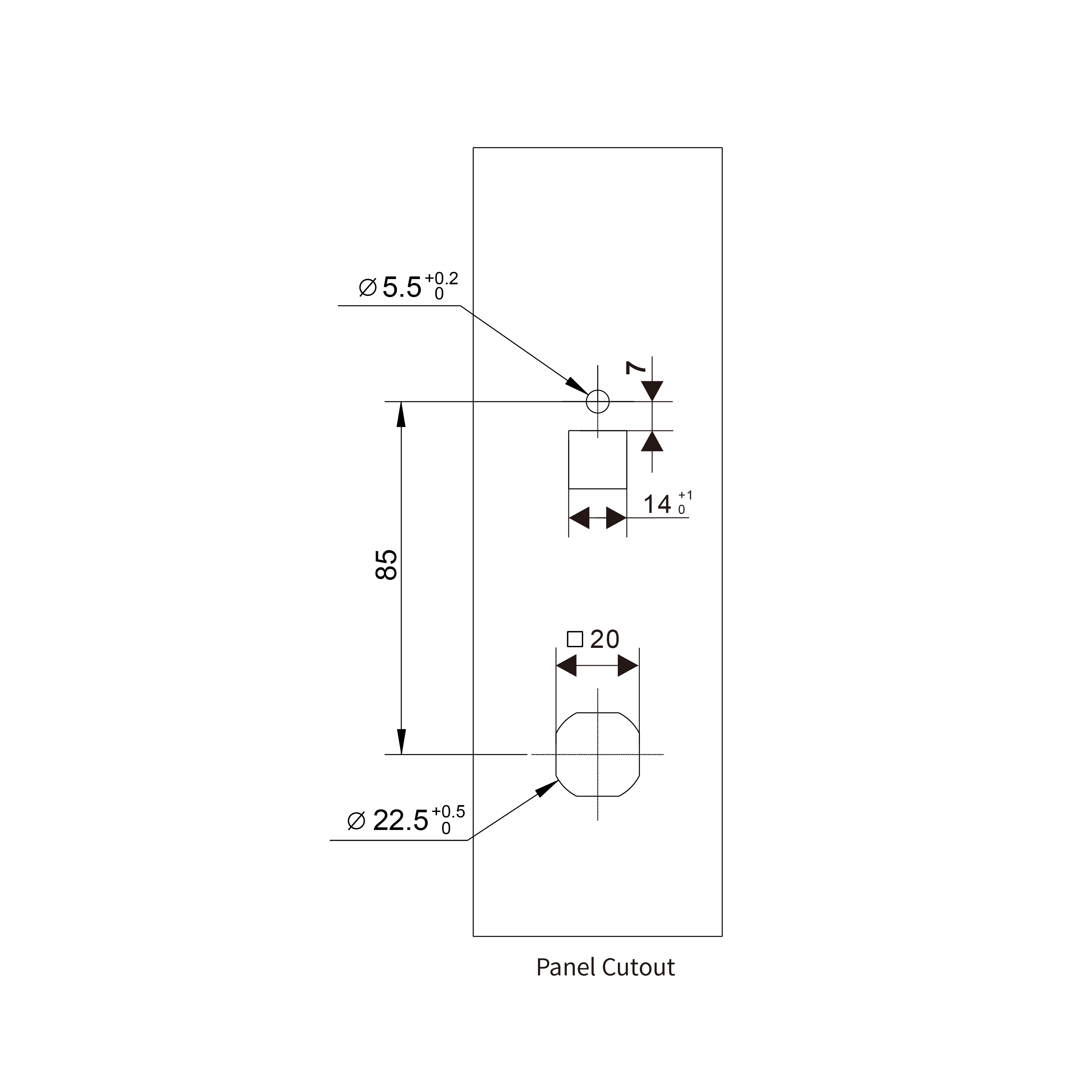

- Panel Cutout： φ22.5x□20.1
- Locking Type： Cam Control
- IP Rating： IP65
-
Finish：
Zinc die handle: Black textured powder coated
- Higher IP Protection grade(IP65), with waterproof and dustproof
- Diverse unlocking methods available
- Four-color sound and light feedback function
- Wire harness anti-loosening fixing structure
- Zinc die Handle
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet
1517 series electronic swinghandle product datasheet
| Part Number | 开启方式名称表 | |
|---|---|---|
|
1517-R201W-20 | Mechanical key Remote control Password |
|
|
1517-R207W-20 Note: The fingerprint version must be used with a waterproof cover | Mechanical key Remote control Password Fingerprint |
|
|
1517-R217W-20 | Mechanical key Remote control Password IC card |
|
|
1517-R223W-20 Note: The fingerprint version must be used with a waterproof cover | Mechanical key Remote control Password IC card Fingerprint |
