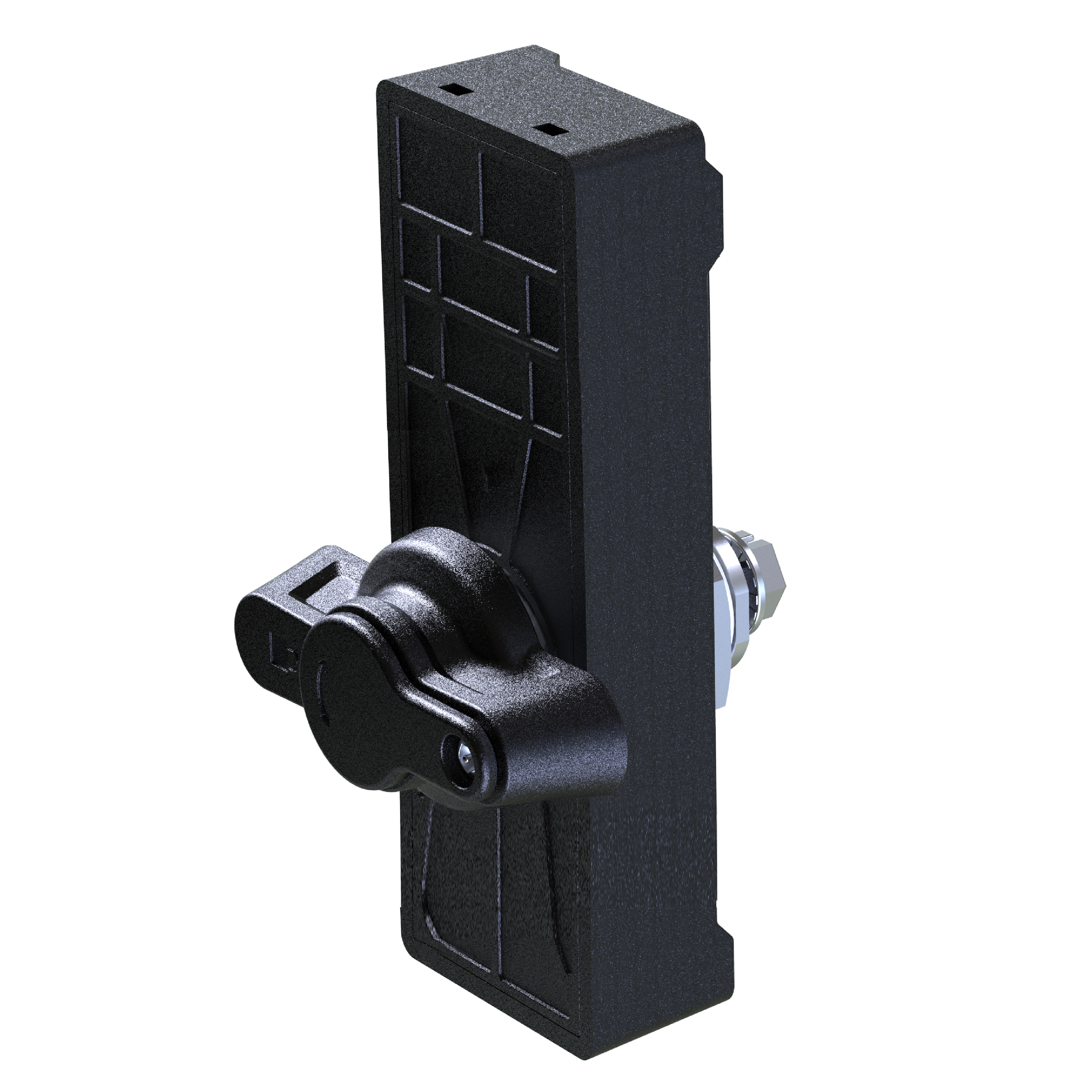

1516 Series Electronic Swinghandle
Outdoor Application,Outdoor IoT Lock,Telecom Electronic Swinghandle,Outdoor Electronic Swinghandle,1516-D200-20,1516-D203-20,1516-R200-20,1516-R203-20
- Working Voltage： DC 12V
- Communication Method： RS485

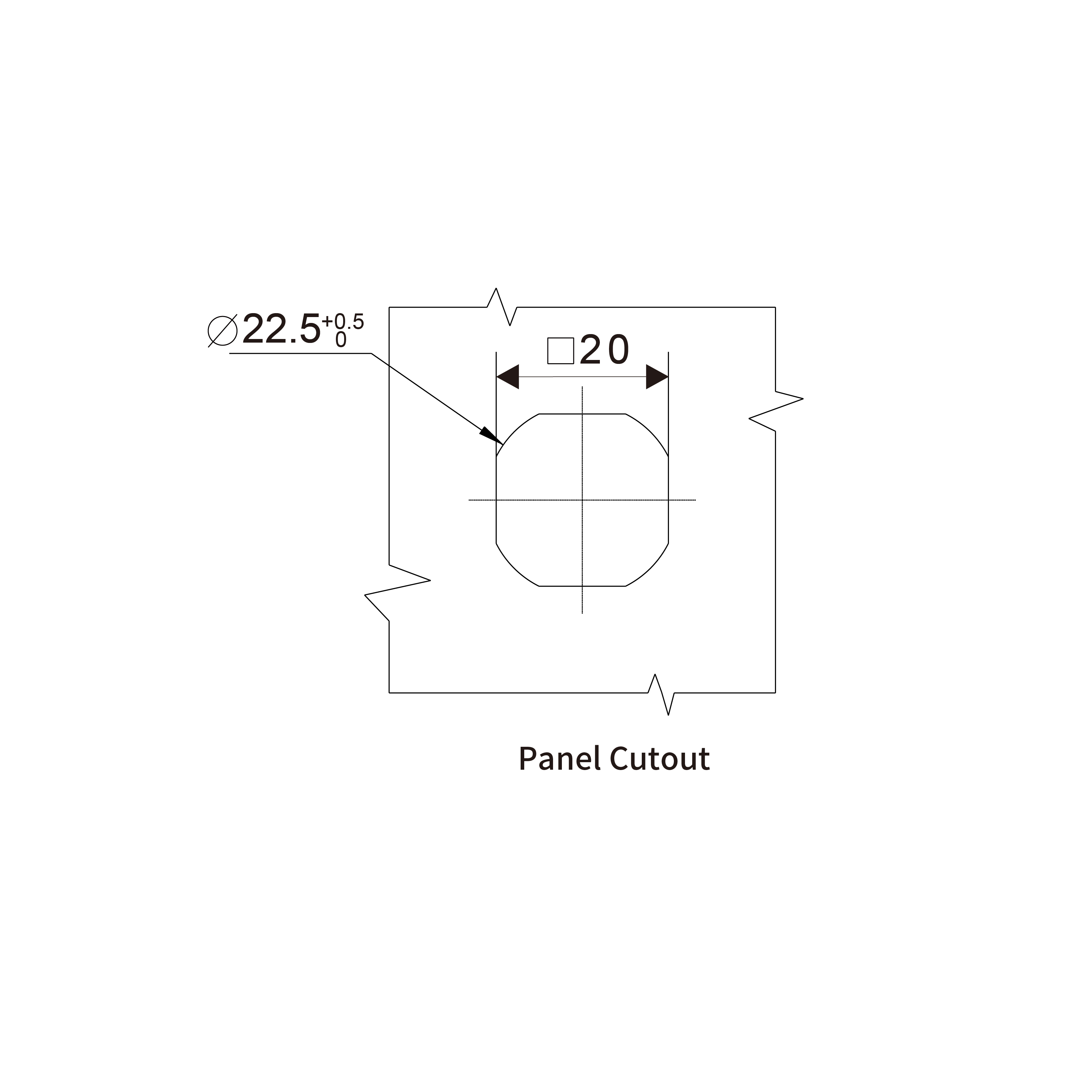

- Panel Cutout： φ22.5x□20.1
- Locking Type： Cam Control
- IP Rating： IP65
-
Finish：
Zinc die handle: Black textured powder coated
- Higher IP Protection grade(IP65), with waterproof and dustproof
- Zinc die Handle
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

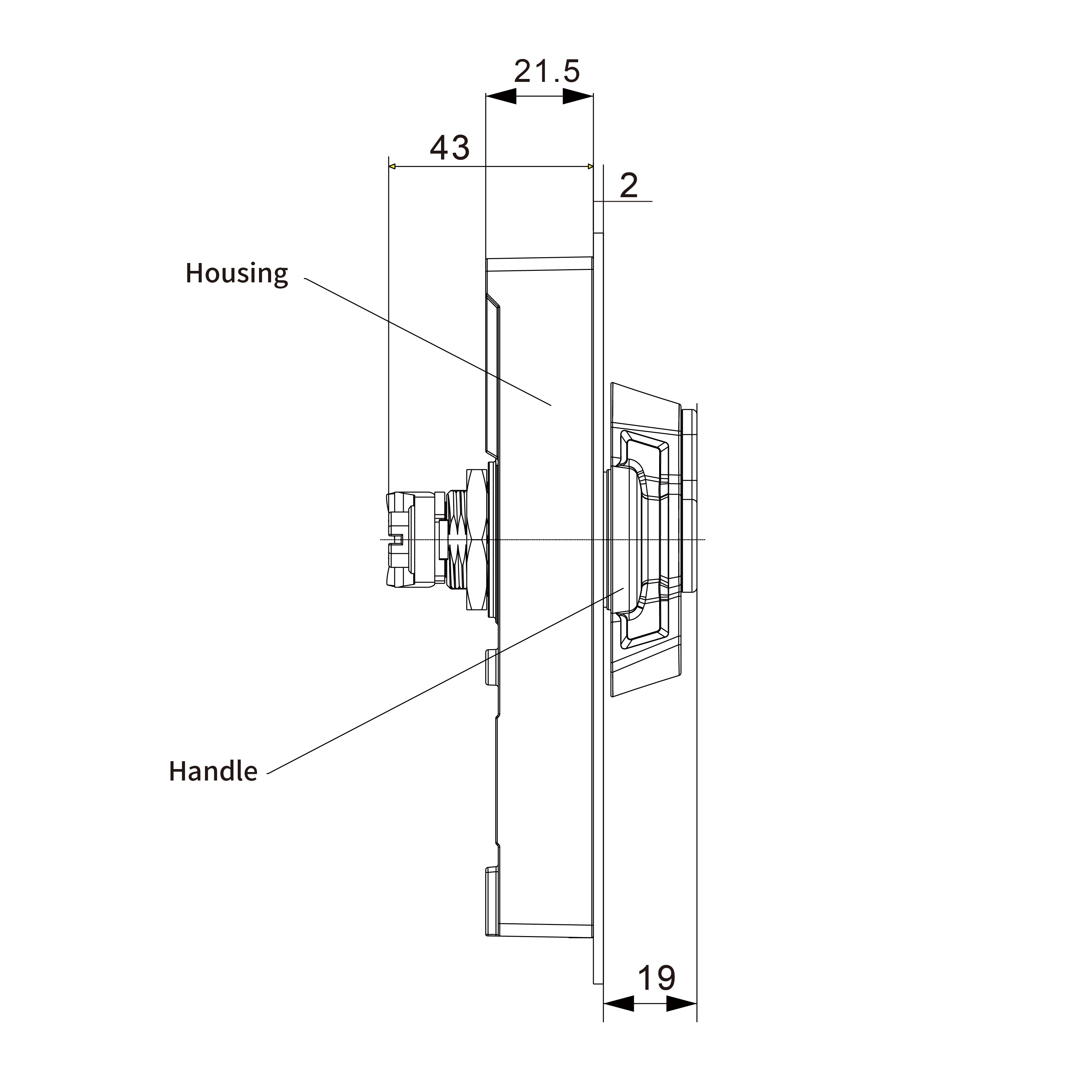

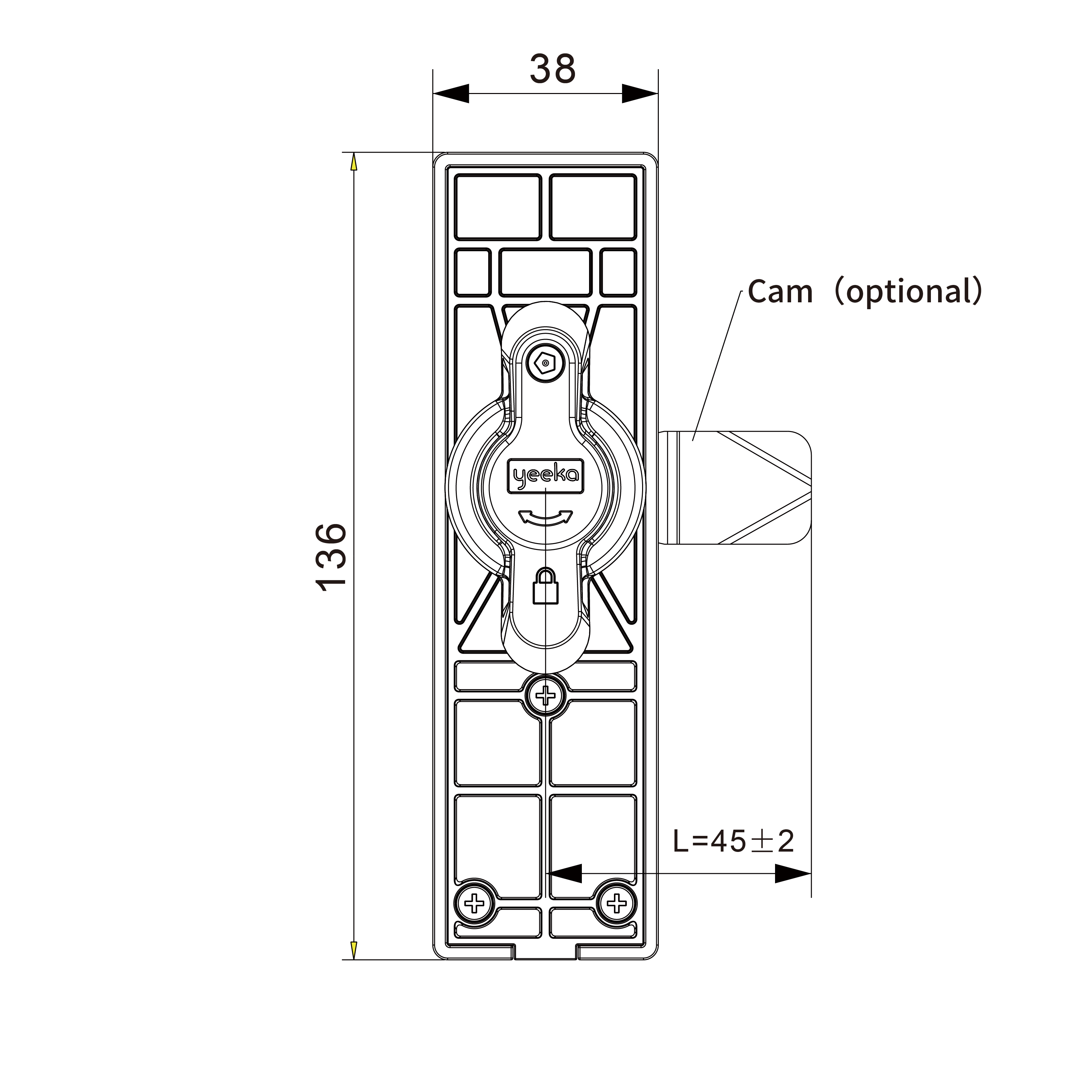

1516 series electronic swinghandle product datasheet
| Part Number | 开启方式名称表 | |
|---|---|---|
|
1516-D200-20 | Mechanical key Remote control(Level signal) |
|
|
1516-D203-20 | Mechanical key Remote control(RS485) |
|
|
1516-R200-20 | Mechanical key Remote control(Level signal) Bluetooth |
|
|
1516-R203-20 | Mechanical key Remote control(RS485) Bluetooth |
Accessories
There are currently no optional accessories available
Associated Products
There are currently no associated products
