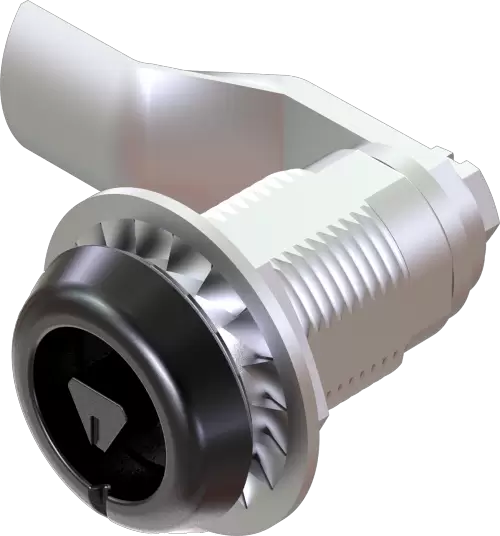

Compression Latch 1423 Series, Large Size Type, Fixed Grip Range, insert without cirle
Compression Latch,Compression lock,1423-0371-10,1423-0471-10,1423-0481-10,1423-0381-10

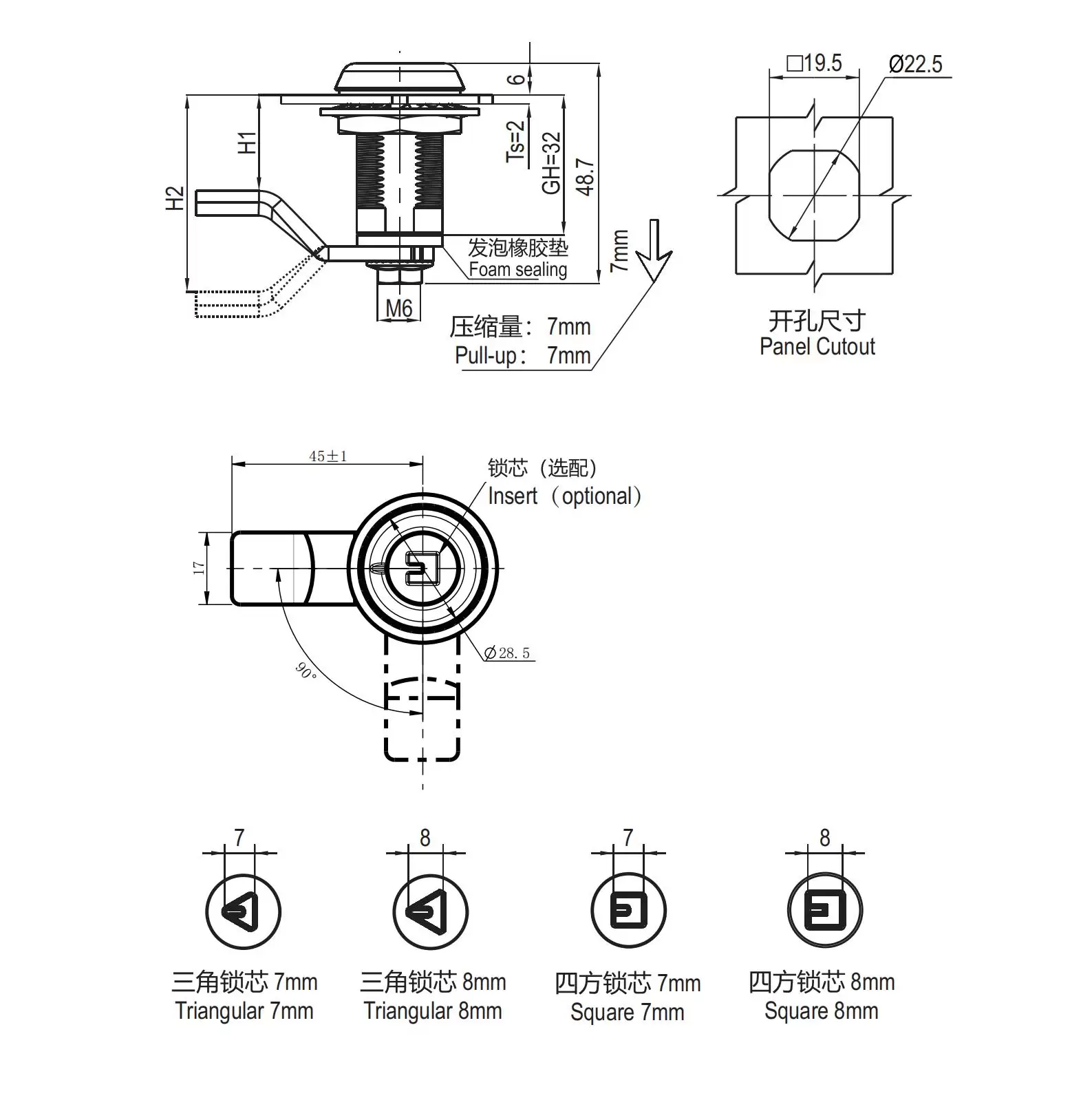

- Panel Cutout： □19.5*φ22.5
- IP Rating： IP65
-
Finish：
Bright chrome plated
Black Matte Powder Coated
- Tool lock insert, easy to open
- Sealed against water and dust
- Keyed Access, Anti-theft
- Left-Right Interchangeable, Convenient Replacement
- Compression locking, for enhanced security
- Housing,Cylinder:Zinc die
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet
Compression Latch 1423 Series, Large Size Type, Fixed Grip Range, insert without cirle Product Data Sheet
| Part Number | Head Style | |
|---|---|---|
|
1423-0371-10 | Triangular 7mm |
|
|
1423-0381-10 | Triangular 8mm |
|
|
1423-0471-10 | Square 7mm |
|
|
1423-0481-10 | Square 8mm |
