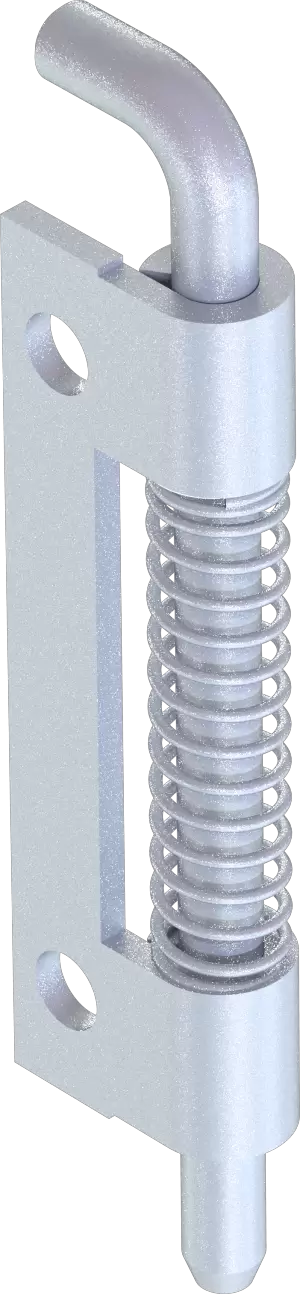

Concealed Hinge 2404-01 Series(Large size)
Concealed Hinge,2404-01-L,2404-01-R,2404-11-L,2404-11-R
-
Finish：
Zinc plated
- Detachable installation
- Left-Right Interchangeable, Convenient Replacement
- Easy installation with screws/nuts
- Concealed installation
- Pin:Q235
- Door Part/Frame part:Q235
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

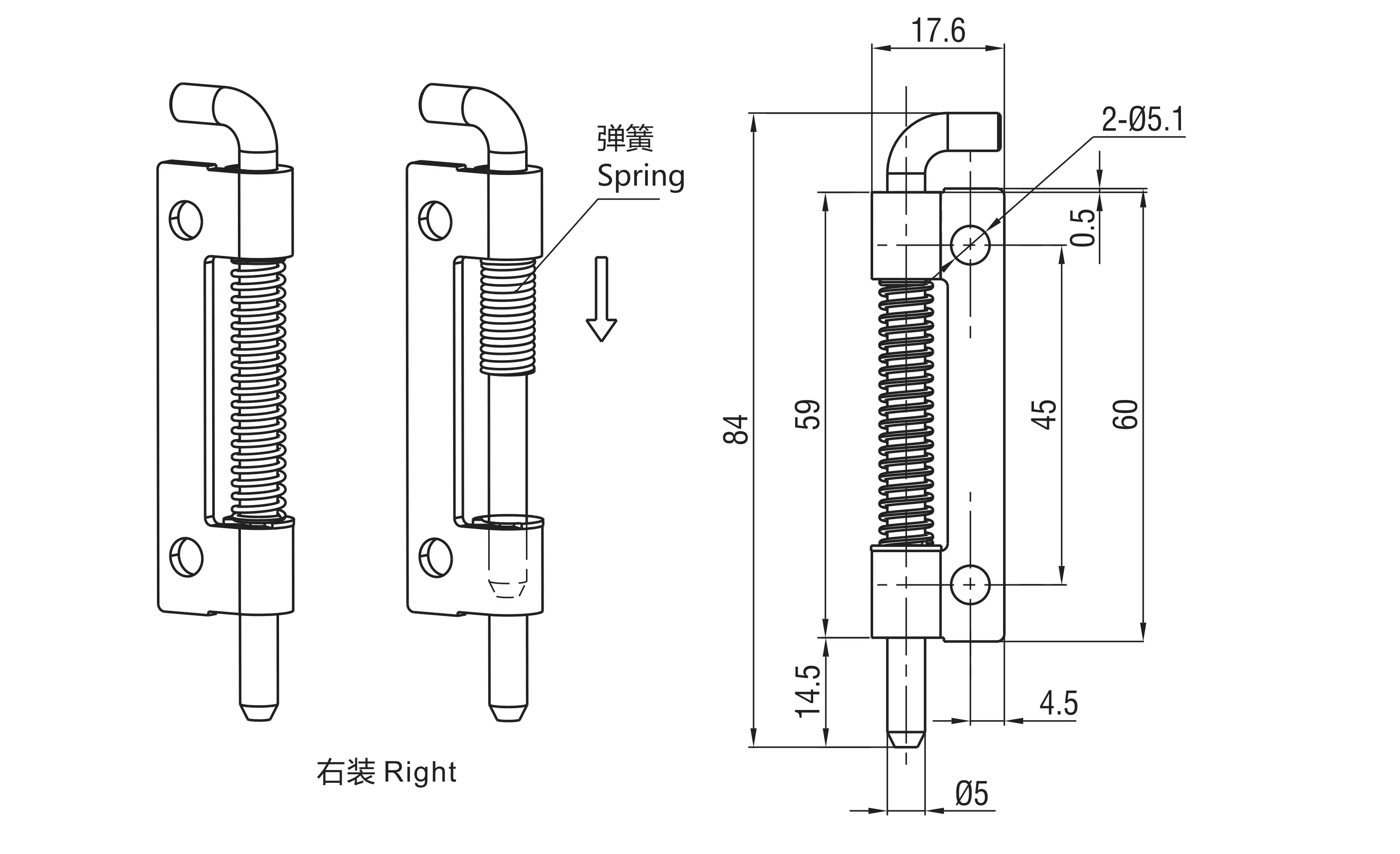

Concealed Hinge 2404-01 Large Size Series Product Data Sheet
| Part Number | Installation Mode | Installation direction | |
|---|---|---|---|
|
2404-01-L | Screw on | Left |
|
|
2404-01-R | Screw on | Right |
|
|
2404-11-L | Weld on | Left |
|
|
2404-11-R | Weld on | Right |
Accessories
There are currently no optional accessories available
