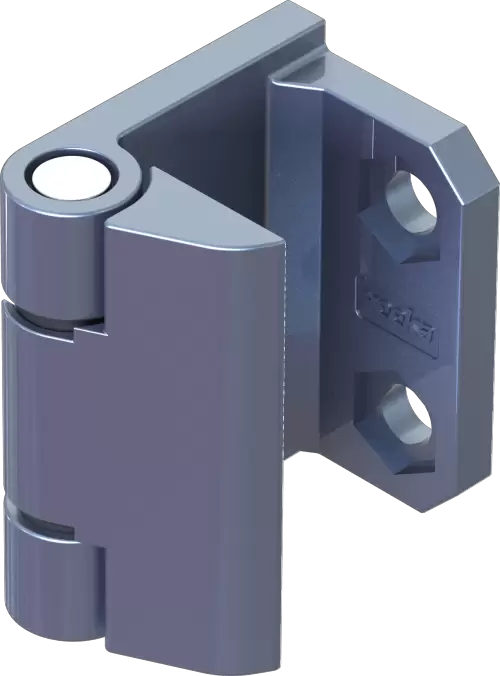

External Hinge 2322 Series
External Hinge,2322-01-24,2322-02-24
-
Finish：
RAL7012 smooth powder coated
- Easy installation with screws/nuts
- Left-Right Interchangeable, Convenient Replacement
- Door Part/Frame part:Zinc die/Steel casting C30
- Pin:Stainless steel 304
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

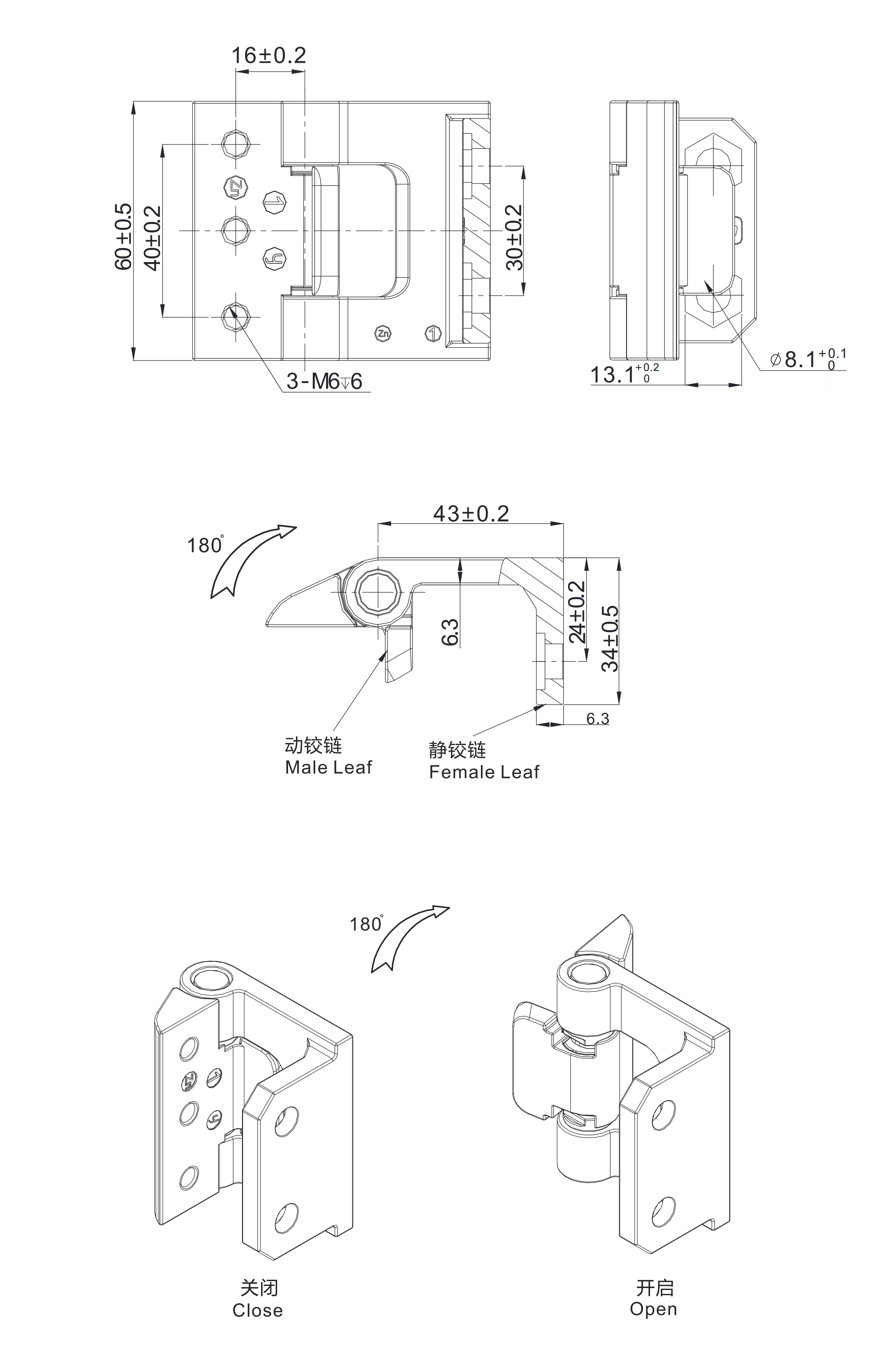

External Hinge 2322 Series Product Data Sheet
| Part Number | Material | Finish | |
|---|---|---|---|
|
2322-01-24 | Zinc die | RAL7012 smooth powder coated |
|
|
2322-02-24 | Steel casting C30 | RAL7012 smooth powder coated |
Accessories
There are currently no optional accessories available
