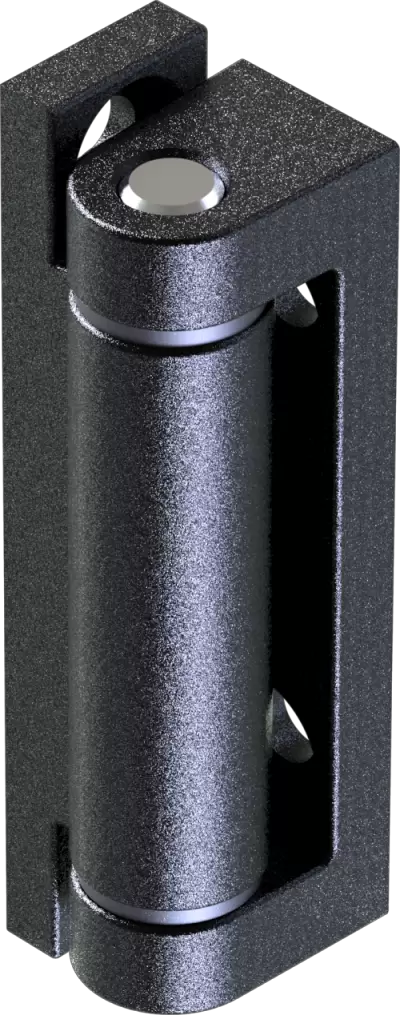

External Hinge 2327 Series
External Hinge,2327-13-20,2327-19-20,2327-13-30,2327-19-30
-
Finish：
Bright chrome plated
Black textured powder coated
- Easy installation with screws/nuts
- Left-Right Interchangeable, Convenient Replacement
- Door Part/Frame part:Zinc die
- Pin:Stainless steel 304
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

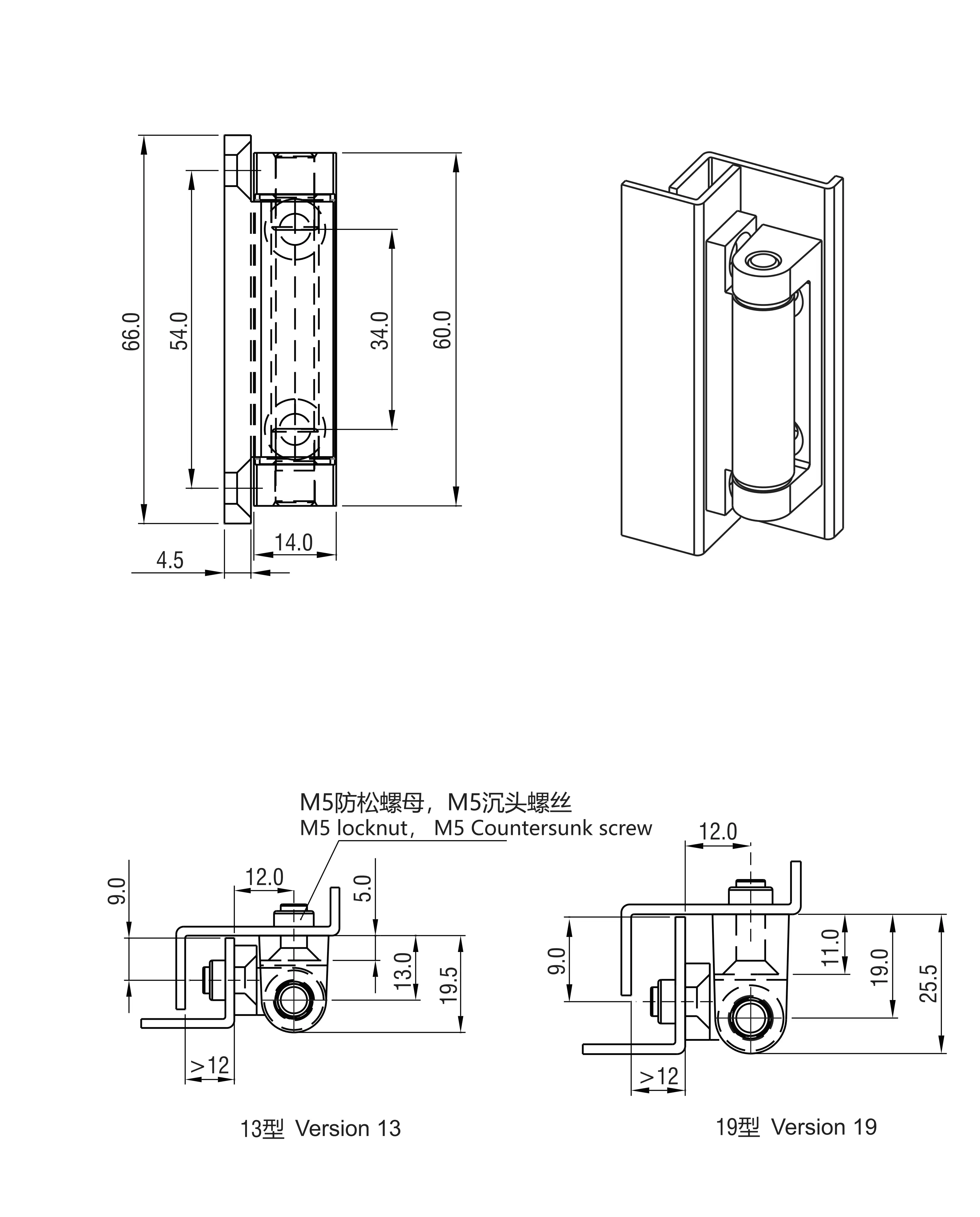

External Hinge 2327 Series Product Data Sheet
| Part Number | Height | Finish | |
|---|---|---|---|
|
2327-13-20 | 13 Type | Black textured powder coated |
|
|
2327-13-30 | 13 Type | Bright chrome plated |
|
|
2327-19-20 | 19 Type | Black textured powder coated |
|
|
2327-19-30 | 19 Type | Bright chrome plated |
