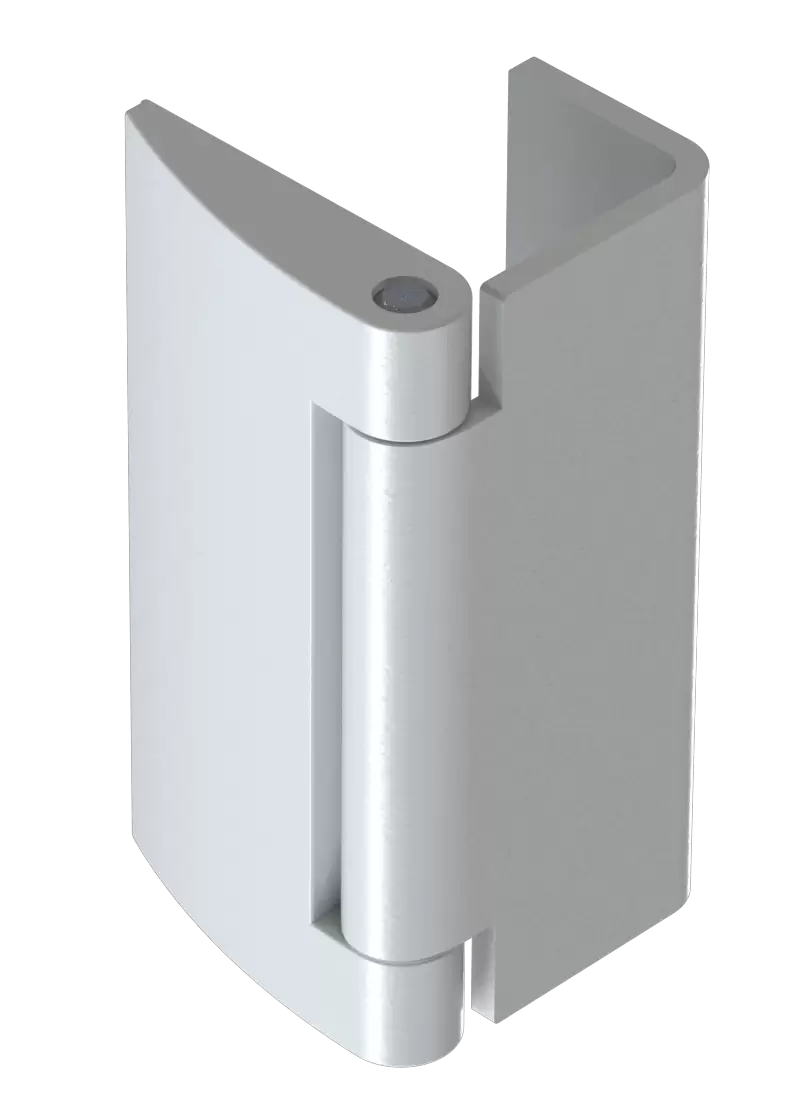

External Hinge 2328 Series
External Hinge,2328-01-10,2328-01-25
-
Finish：
Black Matte Powder Coated
RAL9016 textured powder coated
- Easy installation with screws/nuts
- Left-Right Interchangeable, Convenient Replacement
- Door Part/Frame part:Zinc die/Q235
- Pin:Stainless steel 304
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

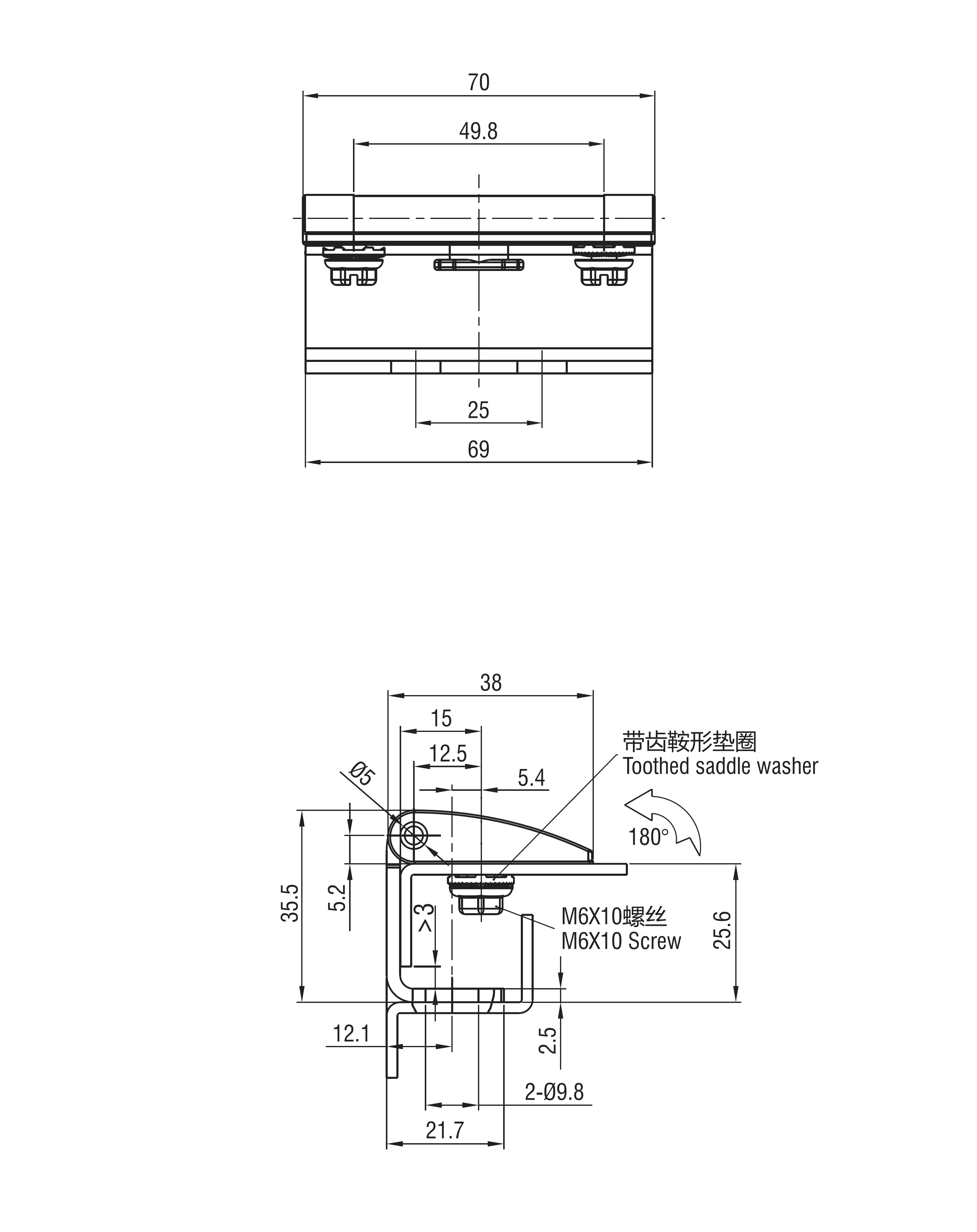

External Hinge 2328 Series Product Data Sheet
| Part Number | Finish | |
|---|---|---|
|
2328-01-10 | Black Matte Powder Coated |
|
|
2328-01-25 | RAL9016 textured powder coated |
