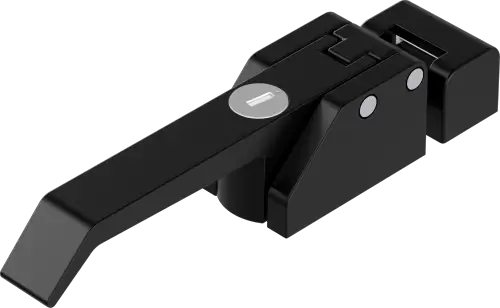

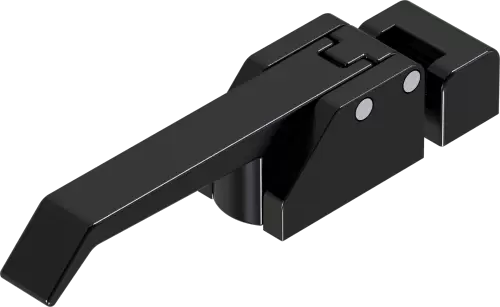

Over-center Draw Latch 1271 Series
Over-center Draw Latch,Over-Center latch,Draw latch,1271-00-316,1271-10-316,1271-10-10,1271-00-30,1271-00-00,1271-10-30,1271-110-10,1271-100-00,1271-100-30,1271-110-30,1271-100-316,1271-110-316
- Panel Cutout： Other
-
Finish：
Bright chrome plated
Black Matte Powder Coated
- Various keys on request
- Sturdy and secure, anti-prying
- Compression locking, for enhanced security
- Housing,Handle:Zinc die
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

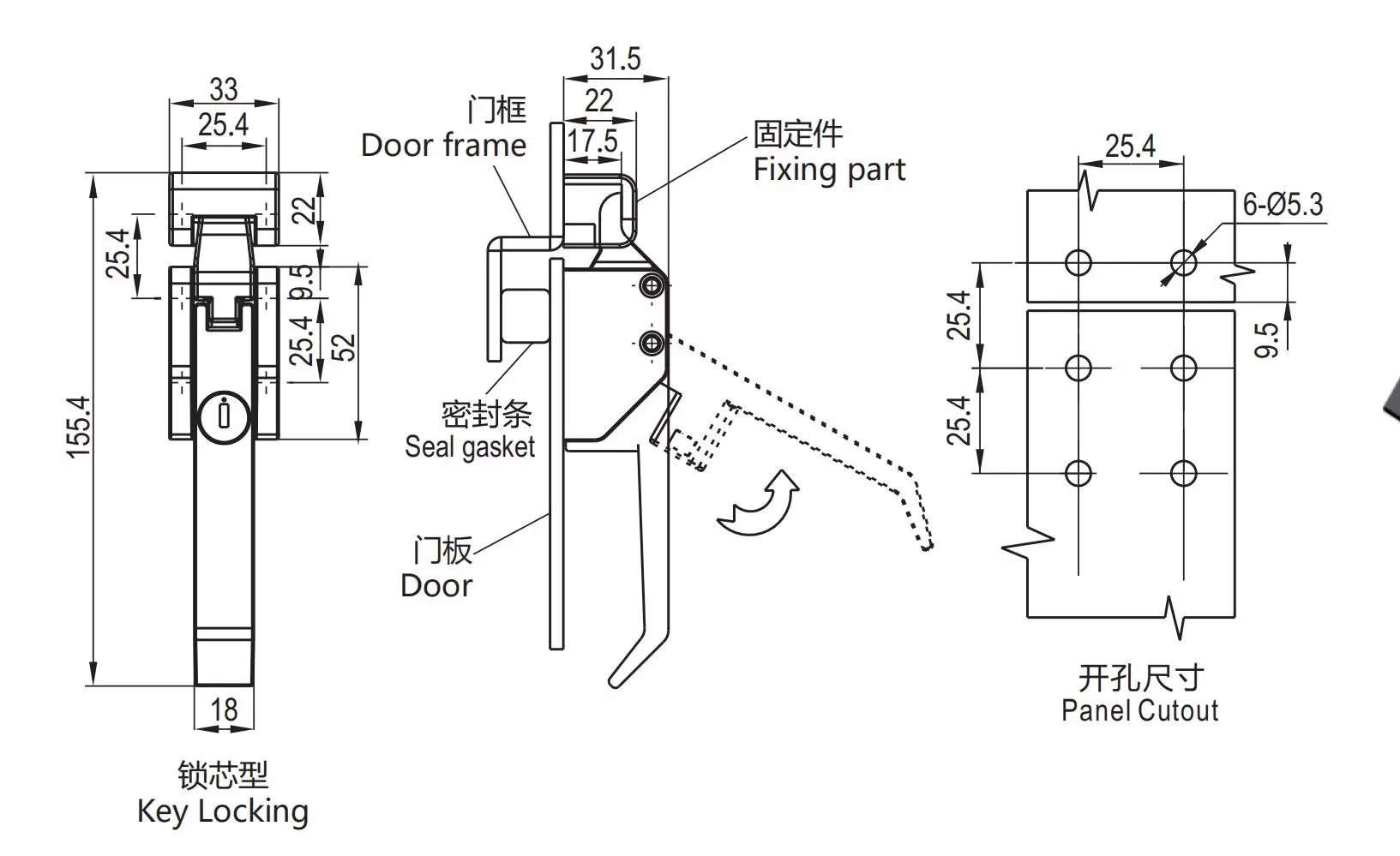

Over-center Draw Latch 1271 Series With Screw Hole M5X0.8 Product Data Sheet
| Part Number | Insert Type | Material | Finish | |
|---|---|---|---|---|
|
1271-00-00 | Non-locking | Zinc die | Black Matte Powder Coated |
|
|
1271-00-30 | Non-locking | Zinc die | Bright chrome plated |
|
|
1271-00-316 | Non-locking | SUS 316 | / |
|
|
1271-10-10 | CH751 Cylinder | Zinc die | Black Matte Powder Coated |
|
|
1271-10-30 | CH751 Cylinder | Zinc die | Bright chrome plated |
|
|
1271-10-316 | CH751 Cylinder | SUS 316 | / |
Over-center Draw Latch 1271 Series With Screw Hole 10-32UNC Product Data Sheet
| Part Number | Insert Type | Material | Finish | |
|---|---|---|---|---|
|
|
1271-100-00 | Non-locking | Zinc die | Black Matte Powder Coated |
|
|
1271-100-30 | Non-locking | Zinc die | Bright chrome plated |
|
|
1271-100-316 | Non-locking | SUS 316 | / |
|
|
1271-110-10 | CH751 Cylinder | Zinc die | Black Matte Powder Coated |
|
|
1271-110-30 | CH751 Cylinder | Zinc die | Bright chrome plated |
|
|
1271-110-316 | CH751 Cylinder | SUS 316 | / |
Accessories
There are currently no optional accessories available
