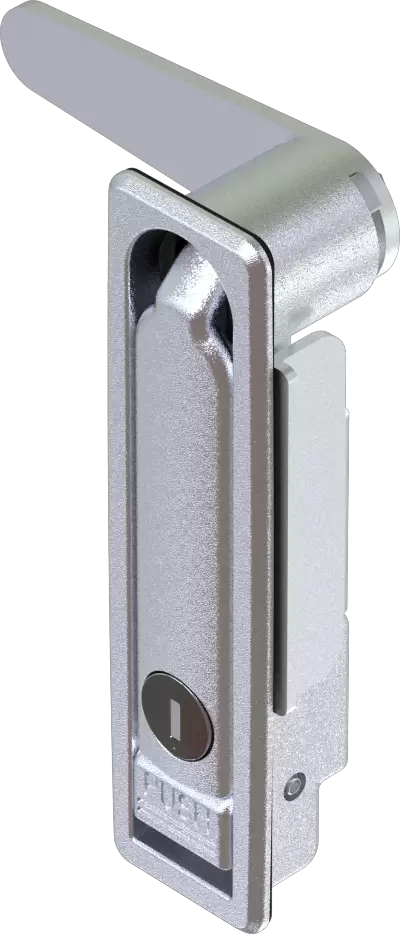

Pushbutton Lock 1221 Large Type Series
Swinghandle,Rod control lock,Mutipoint lock,Three points lock,1221-01-10,1221-01-40
- Panel Cutout： Other
- Installation Mode： Screw on
- Locking Type： Cam Control
- IP Rating： IP40
-
Finish：

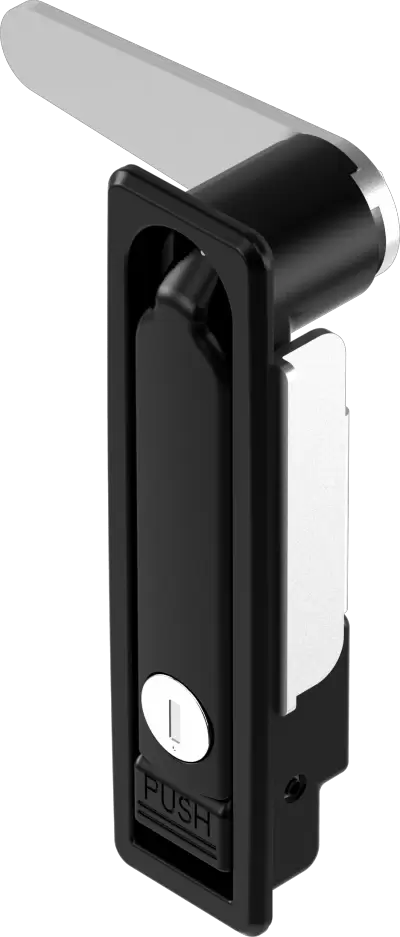

Black Matte Powder Coated
Semi-matte chrome plated
- Handle operation, convenient and quick
- Keyed Access, Anti-theft
- Left-Right Interchangeable, Convenient Replacement
- Button pops open for easy operation
- Padlockable on request
- Push to Lock Without Key
- Housing,Handle:Zinc die
- Padlock Hasp:Stainless steel 316
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

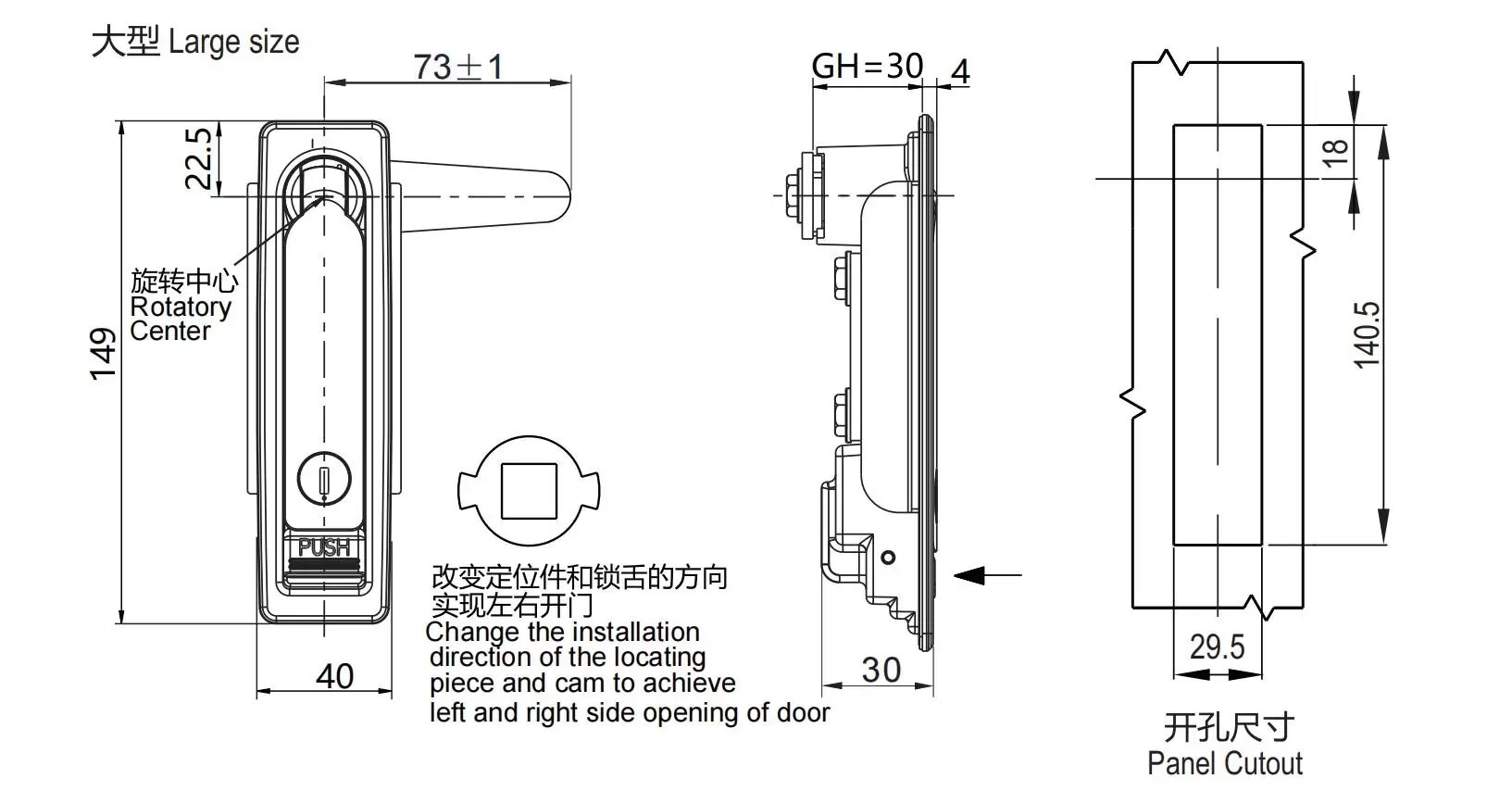

Pushbutton Lock 1221 Large Series Product Data Sheet
| Part Number | Finish | |
|---|---|---|
|
1221-01-10 | Black Matte Powder Coated |
|
|
1221-01-40 | Semi-matte chrome plated |
