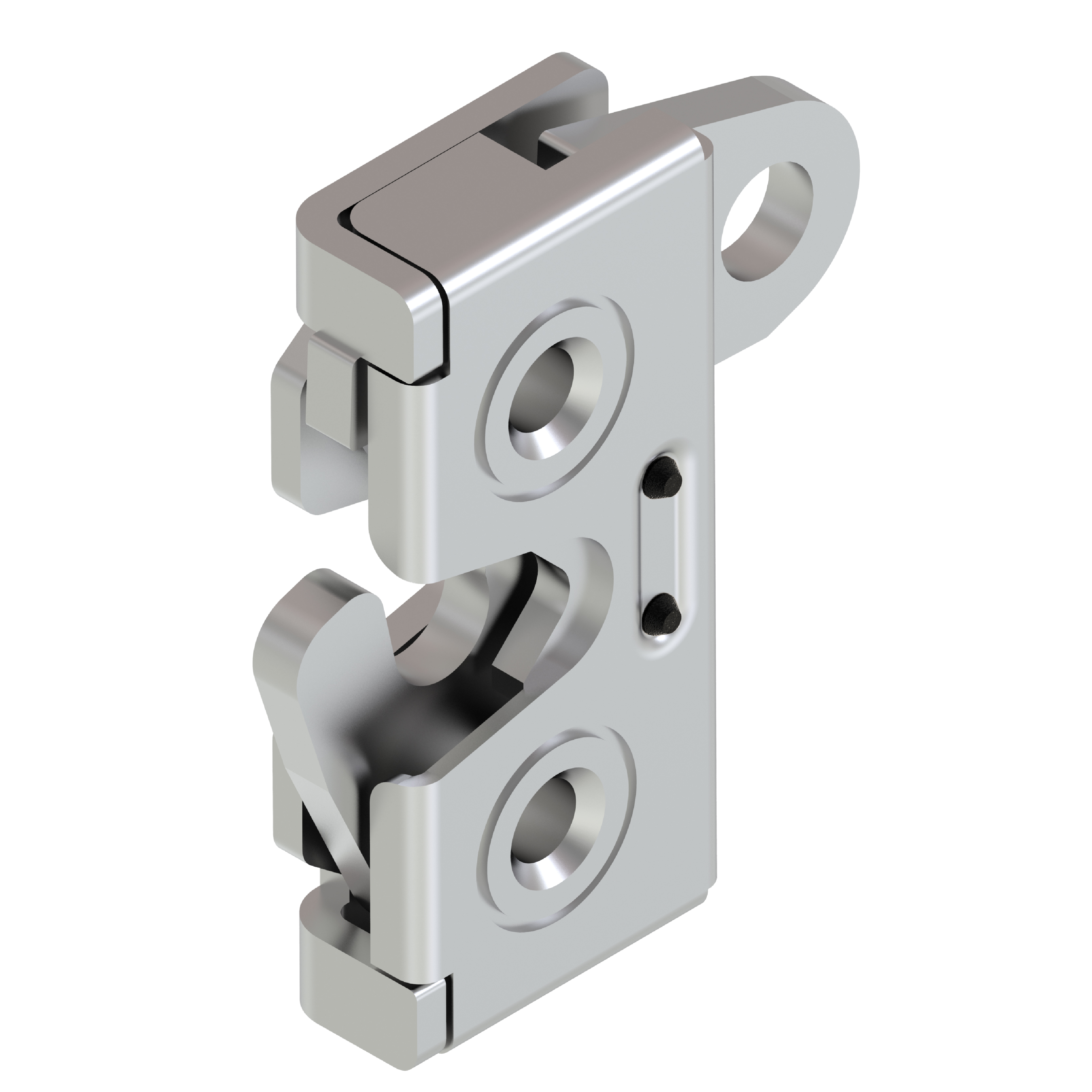

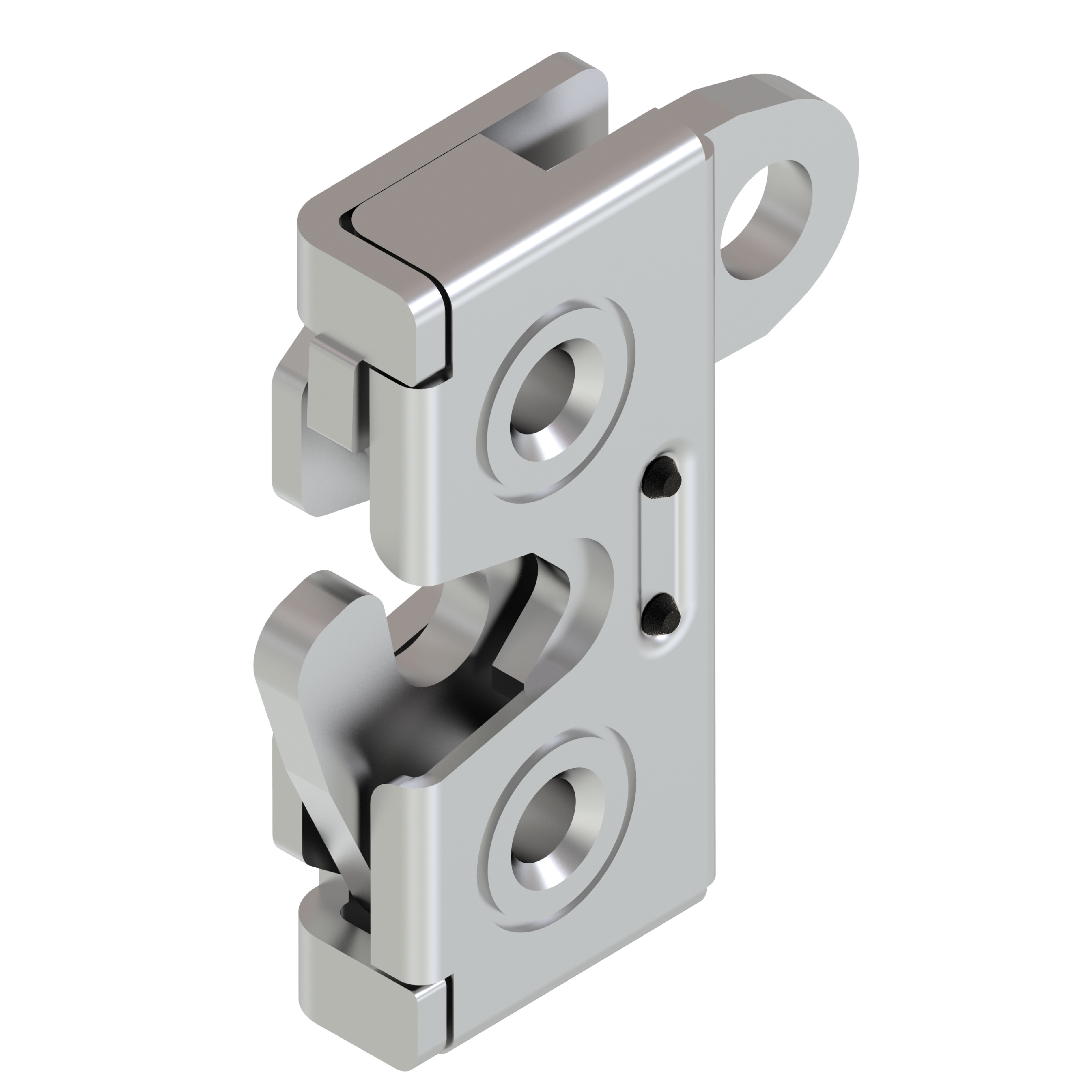

Rotary Latchs 1803 Series Small Size
Rotary Latches,1803-05-2051-01,1803-05-4051-01
- Panel Cutout： Others
-
Finish：
电镀锌
- Remote locking
- Single-point or multi-points locking capability
- Left-Right Interchangeable, Convenient Replacement
- Base:Q235
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice

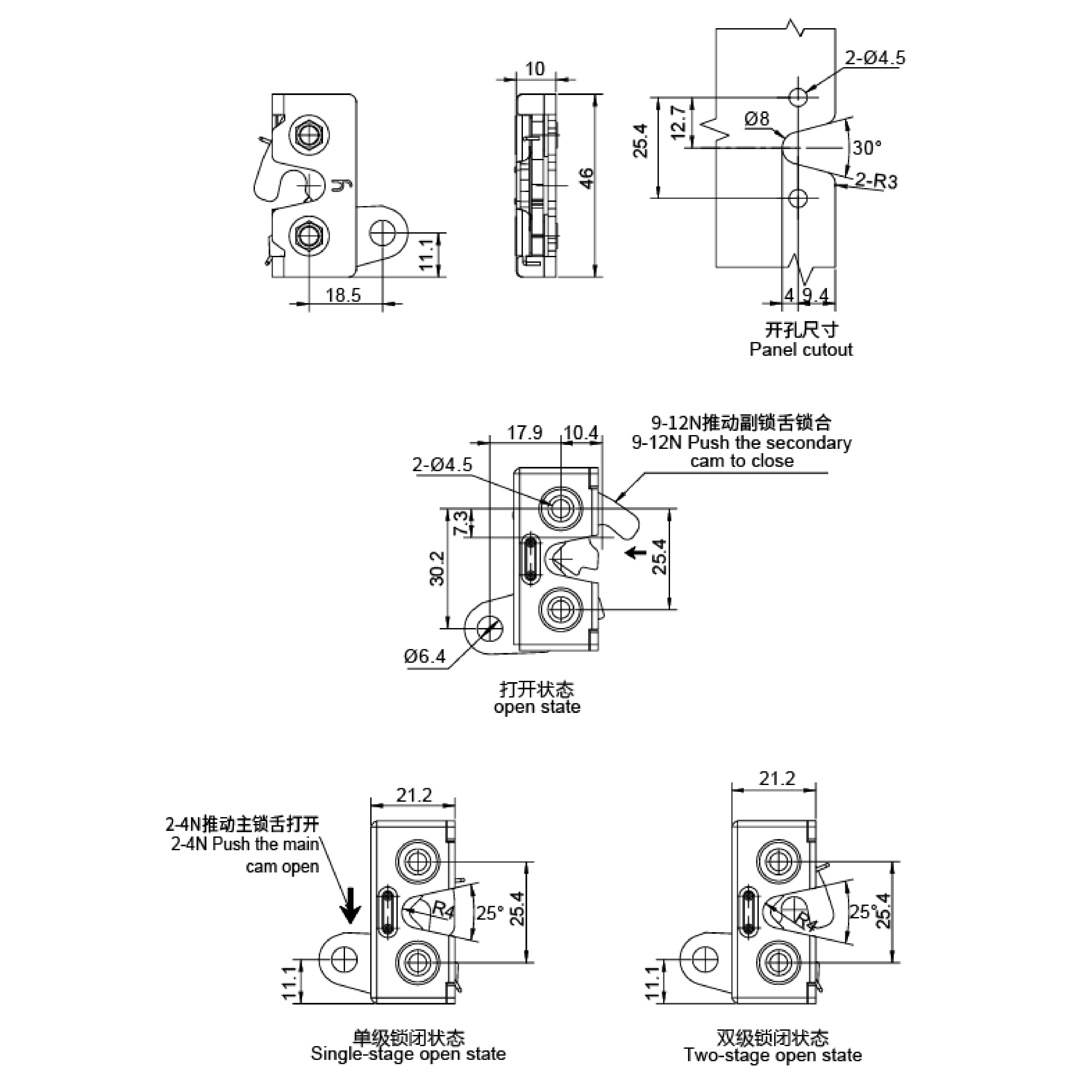

Data Sheet
Rotary Latchs 1803 Series Small Size Product Data Sheet
| Part Number | Panel Cutout Type | Locked State | |
|---|---|---|---|
|
1803-05-2051-01 | Thru Hole | Single-Stage |
|
|
1803-05-4051-01 | Thru Hole | Two-Stage |
