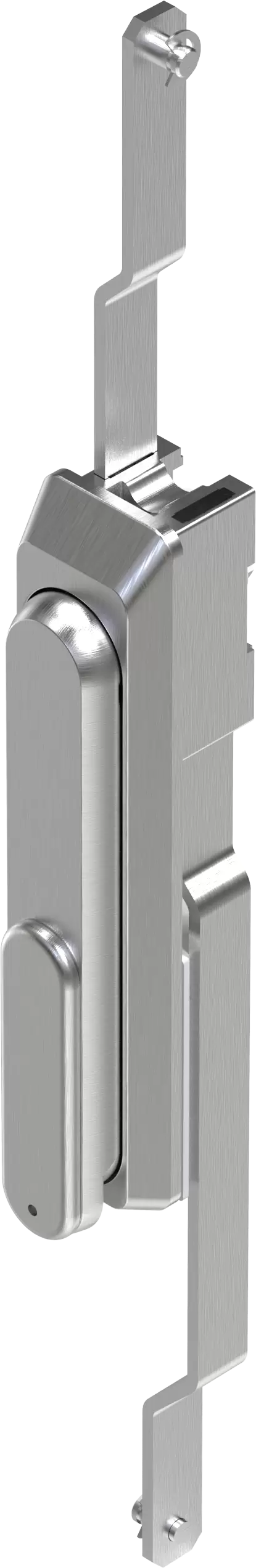

SUS Rod Control Swinghandle 1120 Rod Control Type Series
Swinghandle,Rod control lock,Mutipoint lock,Three points lock,1120-2P01-C,1120-2P01-NC,1120-2P02-C,1120-2P02-NC,1120-2P03-C,1120-2P03-NC,1120-2P04-C,1120-2P04-NC,1120-3P01-C,1120-3P01-NC,1120-3P02-C,1120-3P02-NC,1120-3P03-C,1120-3P03-NC,1120-3P04-C,1120-3P04-NC
- Panel Cutout： 25*50*50*50
- Installation Mode： Screw on
- Locking Type： Rod Control
- IP Rating： IP54
- Handle operation, convenient and quick
- Keyed Access, Anti-theft
- Left-Right Interchangeable, Convenient Replacement
- Button pops open for easy operation
- Padlockable on request
- Euro profile cylinder
- Multiple-points locking
- Housing,Handle:Stainless steel 304/Stainless steel 316
- Rod Control:Stainless steel 304
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet
SUS Rod Control Swinghandle 1120 Two Point Rod Control Series Product Data Sheet
| Part Number | Insert Type | With/Without Dust Cap | |
|---|---|---|---|
|
1120-2P01-C | HS8 Profile Cylinder | With |
|
|
1120-2P01-NC | HS8 Profile Cylinder | Without |
|
|
1120-2P02-C | Alike YK333 Profile Round Cylinder | With |
|
|
1120-2P02-NC | Alike YK333 Profile Round Cylinder | Without |
|
|
1120-2P03-C | Double bit 4mm | With |
|
|
1120-2P03-NC | Double bit 4mm | Without |
|
|
1120-2P04-C | Square 7mm | With |
|
|
1120-2P04-NC | Square 7mm | Without |
SUS Rod Control Swinghandle 1120 Three Point Rod Control Series Product Data Sheet
| Part Number | Insert Type | With/Without Dust Cap | |
|---|---|---|---|
|
|
1120-3P01-C | HS8 Profile Cylinder | With |
|
|
1120-3P01-NC | HS8 Profile Cylinder | Without |
|
|
1120-3P02-C | Alike YK333 Profile Round Cylinder | With |
|
|
1120-3P02-NC | Alike YK333 Profile Round Cylinder | Without |
|
|
1120-3P03-C | Double bit 4mm | With |
|
|
1120-3P03-NC | Double bit 4mm | Without |
|
|
1120-3P04-C | Square 7mm | With |
|
|
1120-3P04-NC | Square 7mm | Without |
