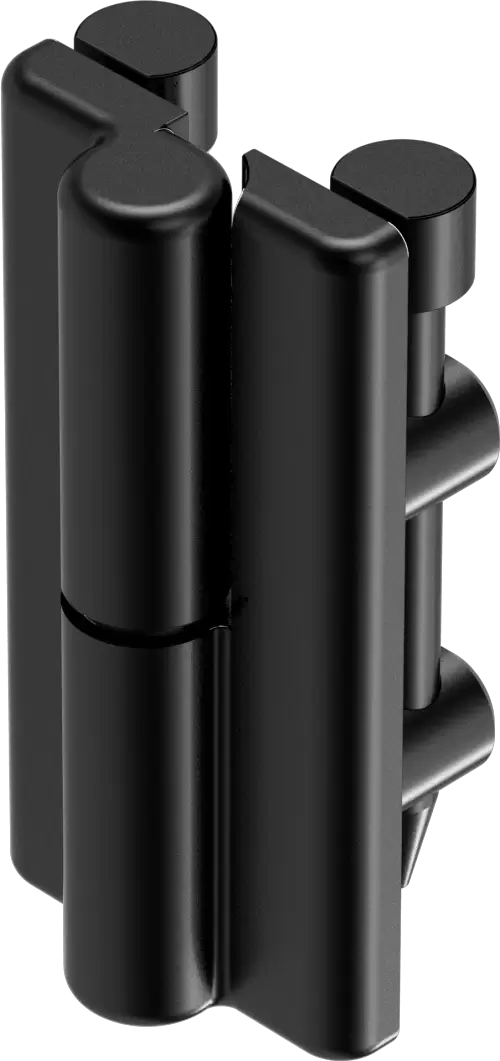

Screw-on Hinge 2107 Series 70x36
Screw-On-Hinge,2107-R,2107-L
- Installation Mode： Pin shaft installation
-
Finish：
Black textured powder coated
- Hinge Size： 70x36
- Easy installation with screws/nuts
- Detachable installation
- Door Part/Frame part:Zinc die
- Pin:Stainless steel 304/PA6GF30
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

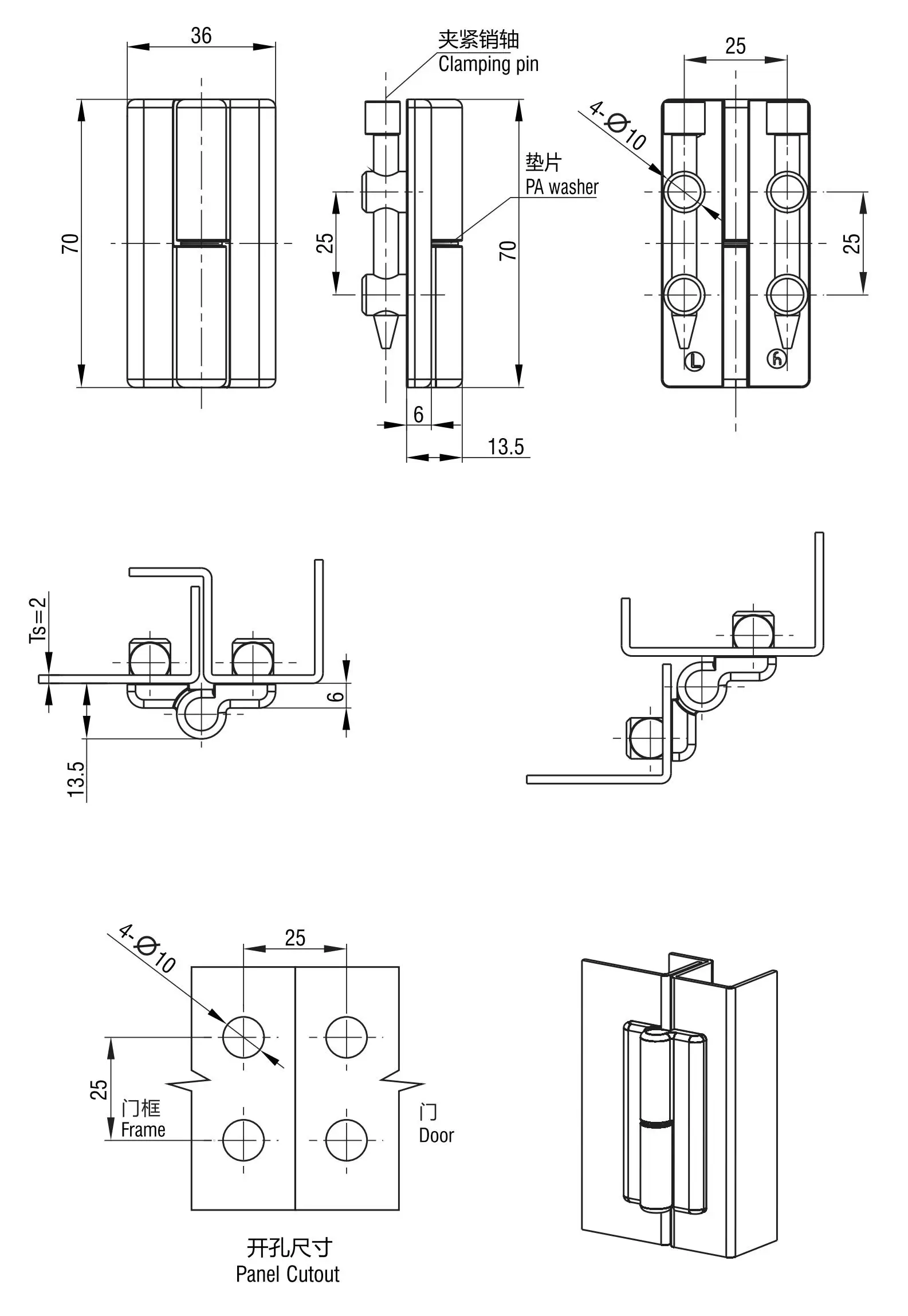

Screw-on Hinge 2107 Series 70x36 Product Data Sheet
| Part Number | Installation direction | |
|---|---|---|
|
2107-L | Left |
|
|
2107-R | Right |
Accessories
There are currently no optional accessories available
