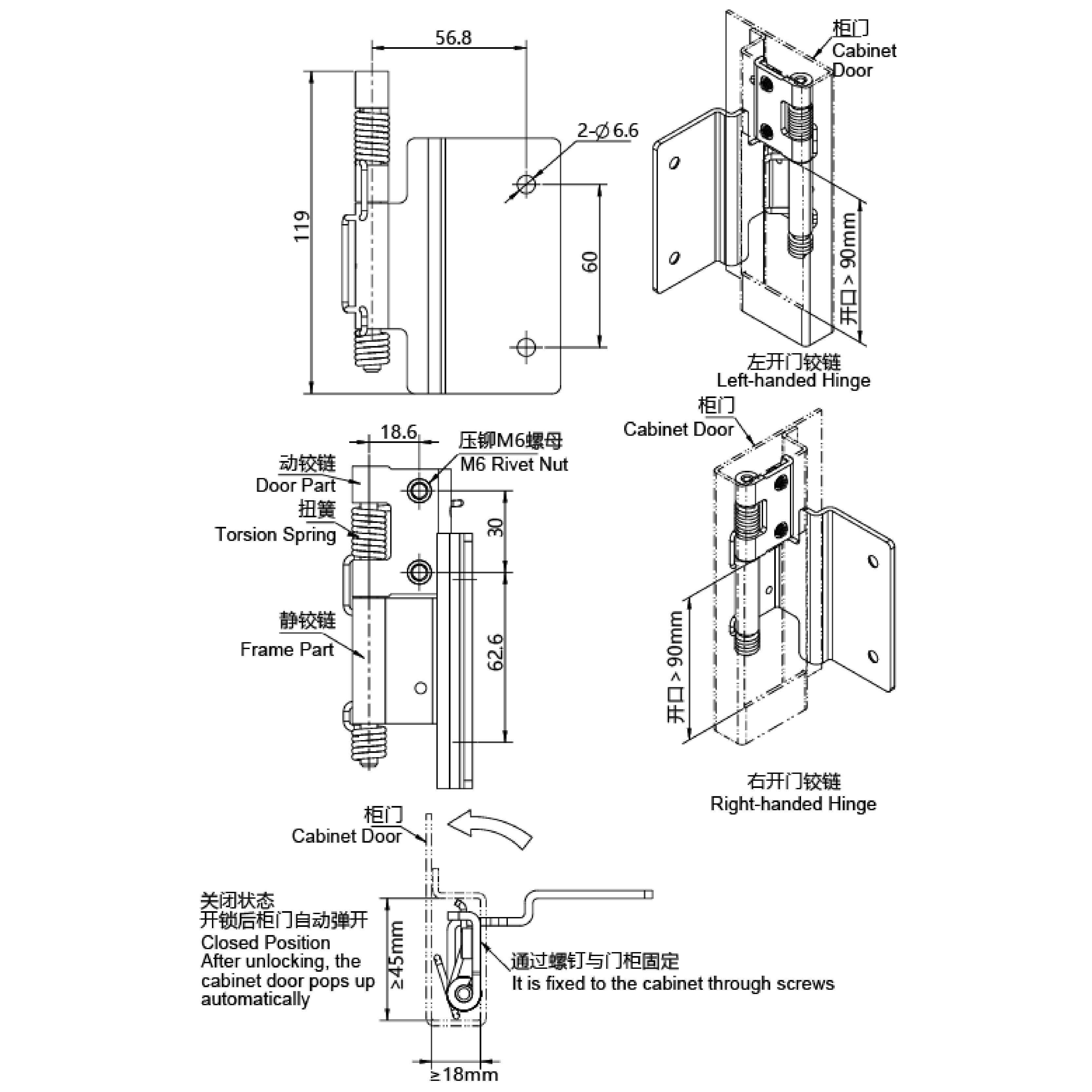

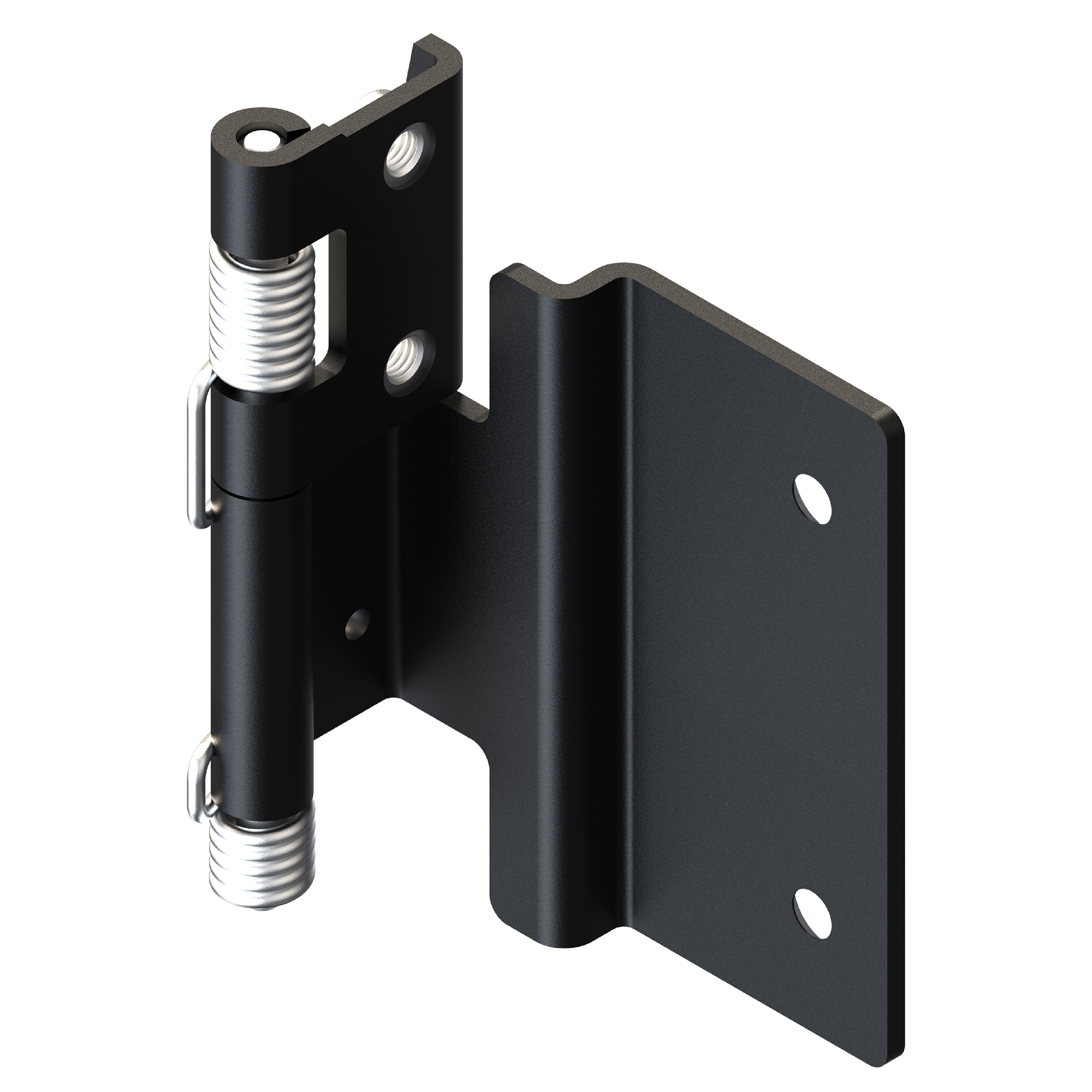

Screw-on Spring Loaded Hinge 2439 Series
Screw-On-Hinge,2439-01150-20L,2439-01150-20R
-
Finish：
Black dull powder coated
- Torque Type： Asymmetric torque
- Door Part/Frame part:Q235
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet
Screw-on Spring Loaded Hinge 2439 Series Product Data Sheet
| Part Number | Door Width Win Meters | Door Weight (KG) | Hinge Spring Force (N/pc) | Recommended Quantity | |
|---|---|---|---|---|---|
|
2439-01150-20L | W≤0.5 | ≤50 | 150N | 2 |
|
|
2439-01150-20L | 0.5＜W≤0.8 | ≤40 | 150N | 2 |
|
|
2439-01150-20L | 0.5＜W≤0.8 | 40-60 | 150N | 3 |
|
|
2439-01150-20L | 0.8＜W≤1.2 | ≤30 | 150N | 3 |
|
|
2439-01150-20L | 0.8＜W≤1.2 | 30-50 | 150N | 4 |
|
|
2439-01150-20L | 1.2＜W≤1.5 | ≤40 | 150N | 4 |
|
|
2439-01150-20R | W≤0.5 | ≤50 | 150N | 2 |
|
|
2439-01150-20R | 0.5＜W≤0.8 | ≤40 | 150N | 2 |
|
|
2439-01150-20R | 0.5＜W≤0.8 | 40-60 | 150N | 3 |
|
|
2439-01150-20R | 0.8＜W≤1.2 | ≤30 | 150N | 3 |
|
|
2439-01150-20R | 0.8＜W≤1.2 | 30-50 | 150N | 4 |
|
|
2439-01150-20R | 1.2＜W≤1.5 | ≤50 | 150N | 4 |
Accessories
There are currently no optional accessories available
Associated Products
There are currently no associated products
