Screw-on Torque Hinge 2118 Series(Large Size)

Torque Hinge,Friction hinge,Positioning hinge,2118-134-11,2118-134-20,2118-118-20,2118-100-11,2118-123-11,2118-118-11,2118-100-20,2118-123-20,2118-134F-11,2118-114R-11,2118-120R-20,2118-123F-11,2118-145F-20,2118-120R-11,2118-127R-20,2118-145F-11,2118-127R-11,2118-134F-20,2118-114R-20,2118-123F-20

Installation Mode： Pan head screw M5

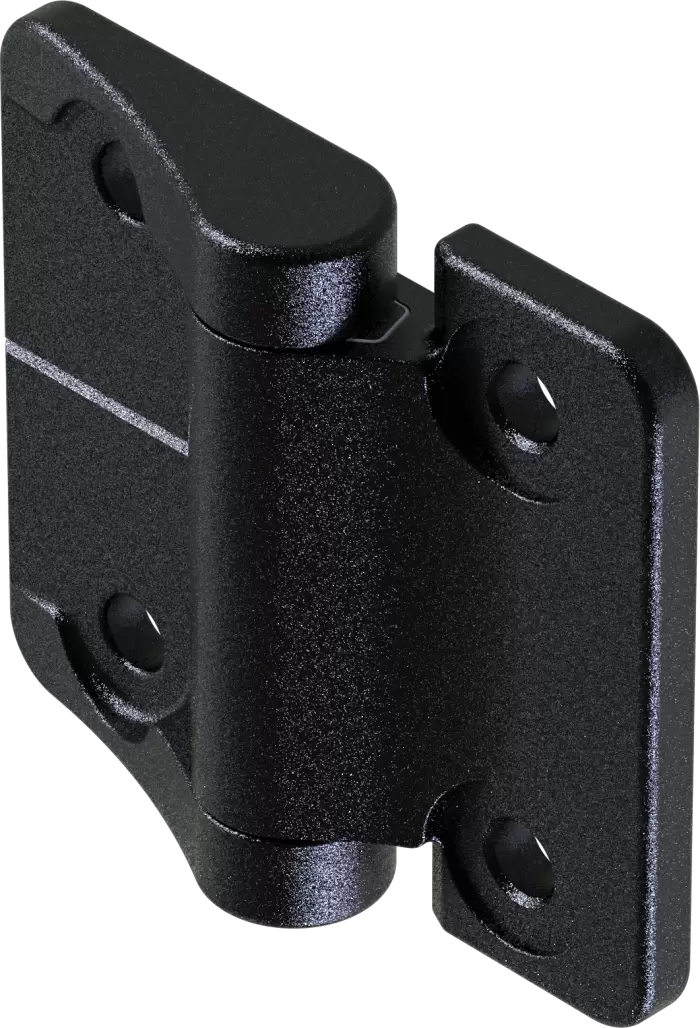

Finish： Black textured powder coated
Natural
Torque Adjustment： Adjustable
Torque Type： Symmetrical torque 、 Asymmetric torque

KEY FEATURES

Various materials on request

Easy installation with screws/nuts

Free hovering within the range of opening angles

Optional symmetric and asymmetric torque

MATERIAL

Door Part/Frame part:Zinc die

Pin:Mild steel

Data Sheet
Accessories
Associated Products
Comment And Advice

Data Sheet

"Screw-on Torque Hinge 2118 Large Series Symmetrical torque A Product Data Sheet"

Part Number	Symmetric N.m	Material	Finish
2118-100-11	Free Swinging	Zinc die	Natural
2118-100-20	Free Swinging	Zinc die	Black textured powder coated
2118-118-11	1.8	Zinc die	Natural
2118-118-20	1.8	Zinc die	Black textured powder coated
2118-123-11	2.3	Zinc die	Natural
2118-123-20	2.3	Zinc die	Black textured powder coated
2118-134-11	3.4	Zinc die	Natural
2118-134-20	3.4	Zinc die	Black textured powder coated

"Screw-on Torque Hinge 2118 Large Series Asymmetric torque B Product Data Sheet"

Part Number	Forward torque N.m	Reverse torque N.m	Material	Finish
2118-114R-11	1.4	2.3	Zinc die	Natural
2118-114R-20	1.4	2.3	Zinc die	Black textured powder coated
2118-120R-11	2	3.4	Zinc die	Natural
2118-120R-20	2	3.4	Zinc die	Black textured powder coated
2118-123F-11	2.3	1.4	Zinc die	Natural
2118-123F-20	2.3	1.4	Zinc die	Black textured powder coated
2118-127R-11	2.7	4.5	Zinc die	Natural
2118-127R-20	2.7	4.5	Zinc die	Black textured powder coated
2118-134F-11	3.4	2	Zinc die	Natural
2118-134F-20	3.4	2	Zinc die	Black textured powder coated
2118-145F-11	4.5	2.7	Zinc die	Natural
2118-145F-20	4.5	2.7	Zinc die	Black textured powder coated

Accessories

There are currently no optional accessories available

Associated Products

Screw-on Torque Hinge 2118 Small Series

Screw-on Torque Hinge 2127 Series(53.5x40)

External Hinge 2328 Series
