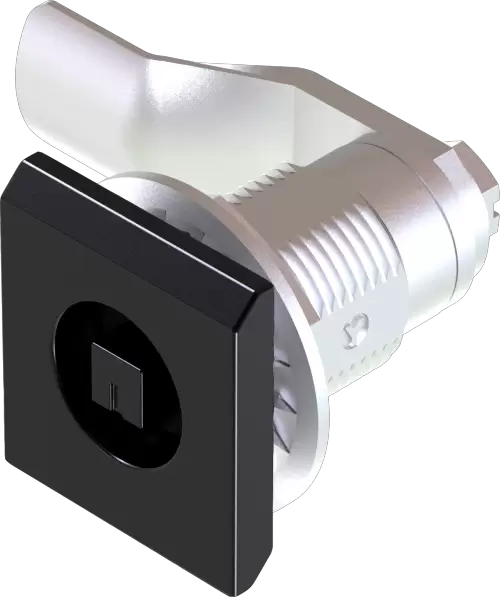

Compression Latch 1436 Series, Square Face, Large Size Type, Fixed Grip Range, insert without cirle
Compression Latch,Compression lock,1436-05-S10,1436-013-S10,1436-20-S10,1436-037-S10,1436-038-S10,1436-047-S10,1436-048-S10,1436-060-S10,1436-068-S10,1436-0371-S10,1436-0381-S10,1436-0471-S10,1436-0481-S10

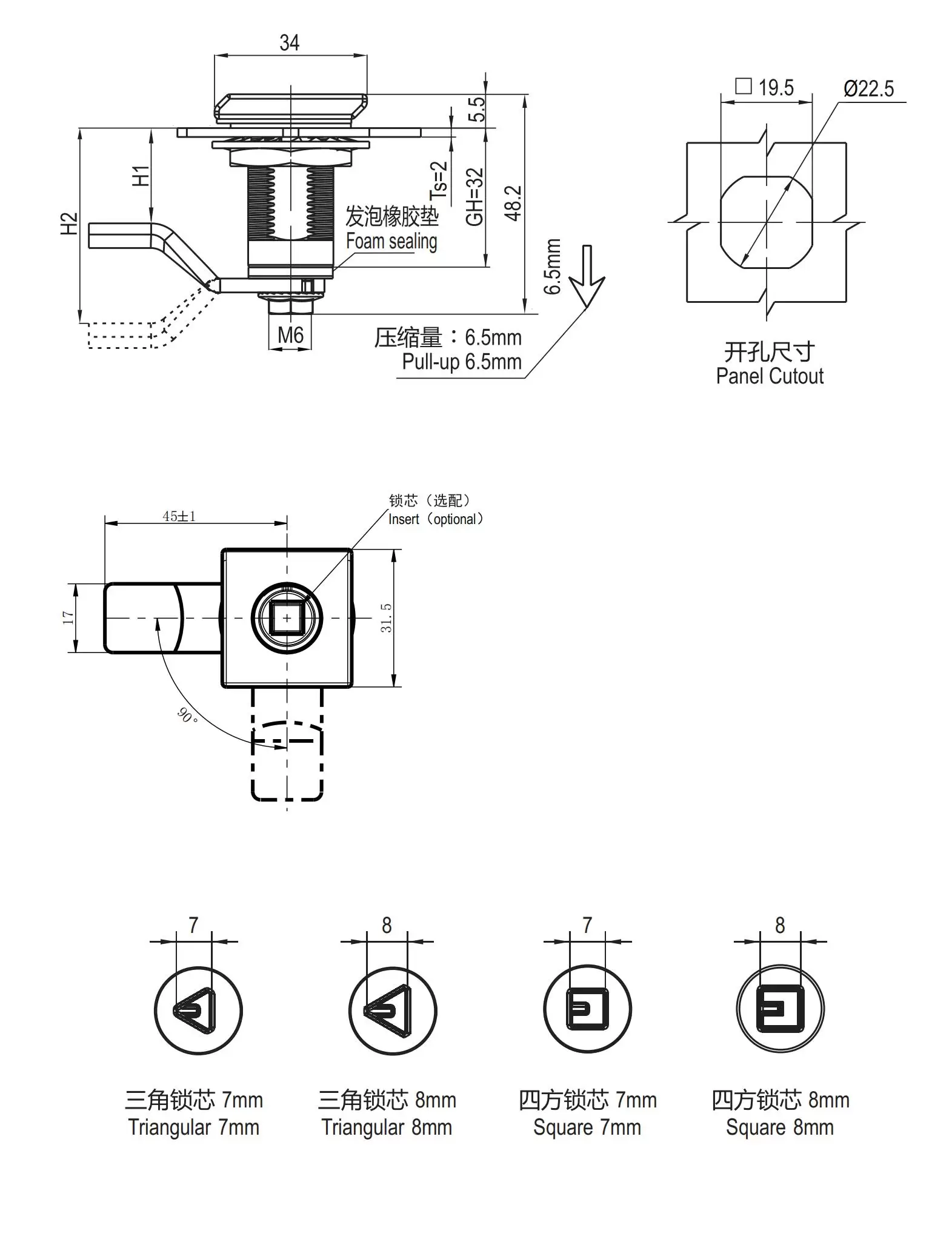

- Panel Cutout： □19.5*φ22.5
- IP Rating： IP65
-
Finish：
Bright chrome plated
Black Matte Powder Coated
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet
Compression Latch 1436 Series, Square Face, Large Size Type, Fixed Grip Range Product Data Sheet
| Part Number | Shaft style | Insert Type | |
|---|---|---|---|
|
1436-05-S10 | Short shaft | Slotted recess |
|
|
1436-013-S10 | Short shaft | Double bit 3mm |
|
|
1436-20-S10 | Short shaft | Key operated |
|
|
1436-037-S10 | Short shaft | Triangular 7mm |
|
|
1436-038-S10 | Short shaft | Triangular 8mm |
|
|
1436-047-S10 | Short shaft | Square 7mm |
|
|
1436-048-S10 | Short shaft | Square 8mm |
|
|
1436-060-S10 | Short shaft | Hexagon male 10mm |
|
|
1436-068-S10 | Short shaft | Hexagon female 8mm |
|
|
1436-0371-S10 | Short shaft | Triangular 7mm |
|
|
1436-0381-S10 | Short shaft | Triangular 8mm |
|
|
1436-0471-S10 | Short shaft | Square 7mm |
|
|
1436-0481-S10 | Short shaft | Square 8mm |
