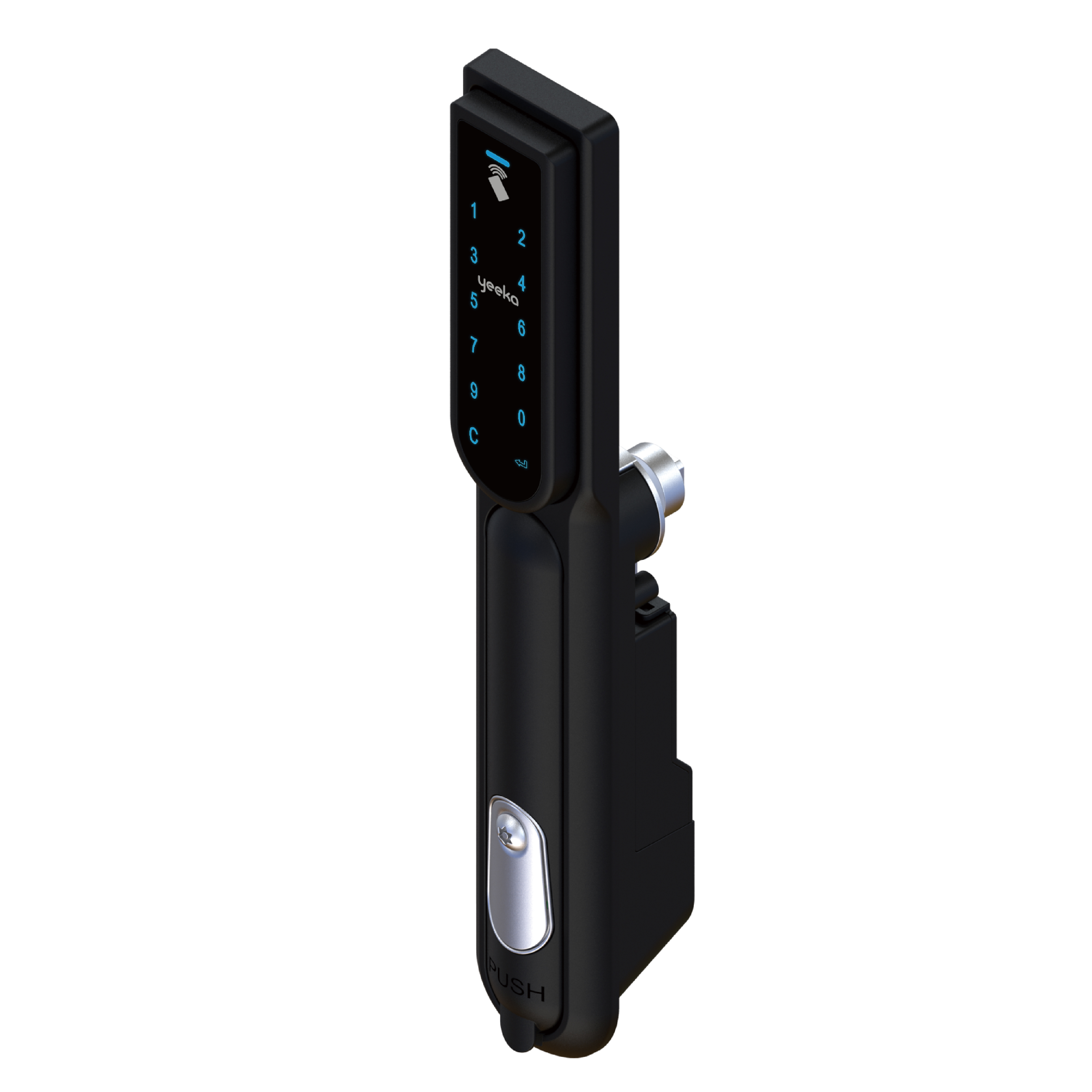

1518-R206-A20 Series Electronic Swinghandle
Outdoor Application,Outdoor IoT Lock,Telecom Electronic Swinghandle,Outdoor Electronic Swinghandle,1518-R206-A20
- Working Voltage： DC 12V
- Communication Method： RS485

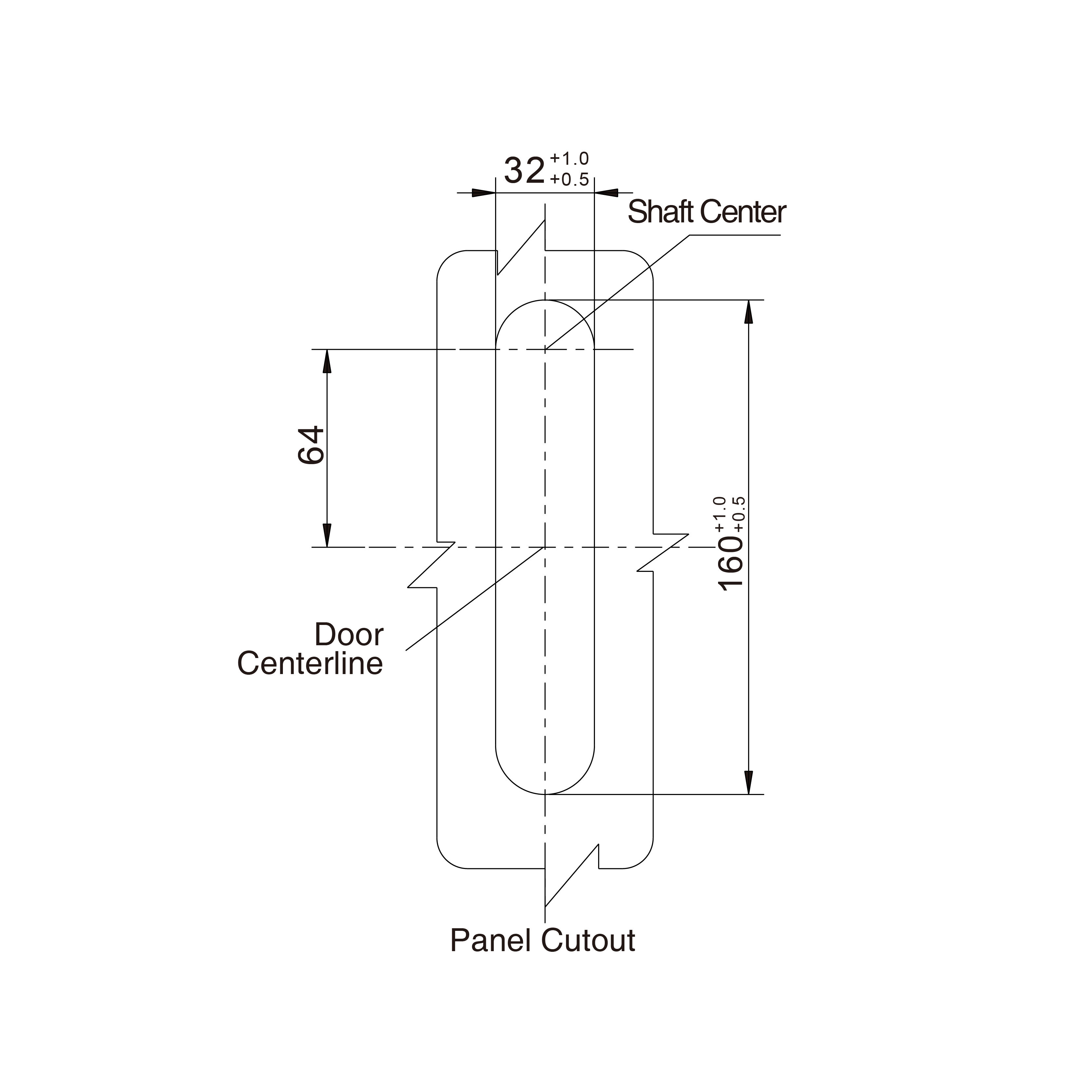

- Panel Cutout： 32*160
- Locking Type： Cam locking type
- IP Rating： IP65
-
Finish：
Zinc die base,Zinc die handle: Black textured powder coated
- Higher IP Protection grade(IP65), with waterproof and dustproof
- Password Unlocking
- Anti-Loosening Wiring Harness Structure
- Zinc die Base
- Zinc die Handle
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

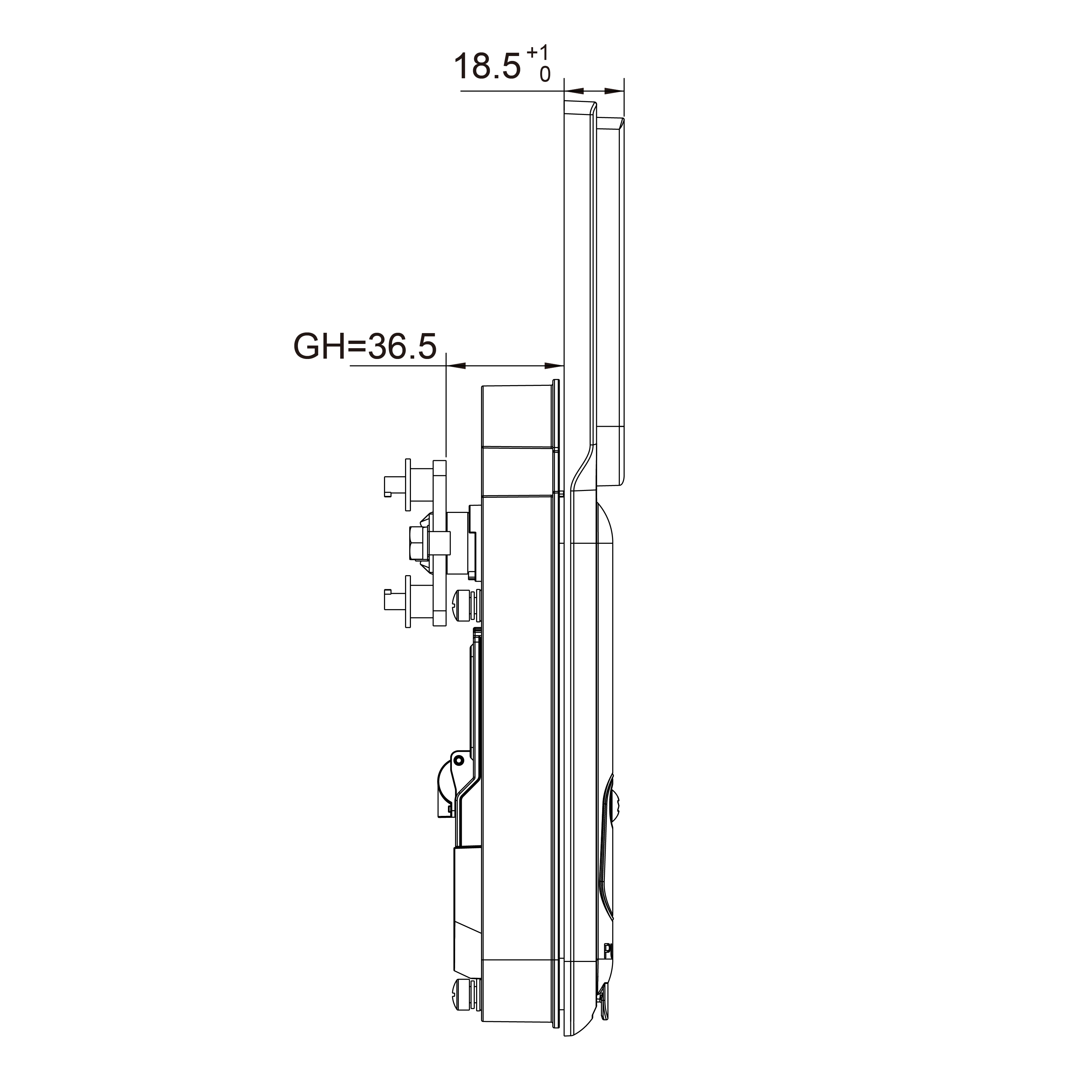

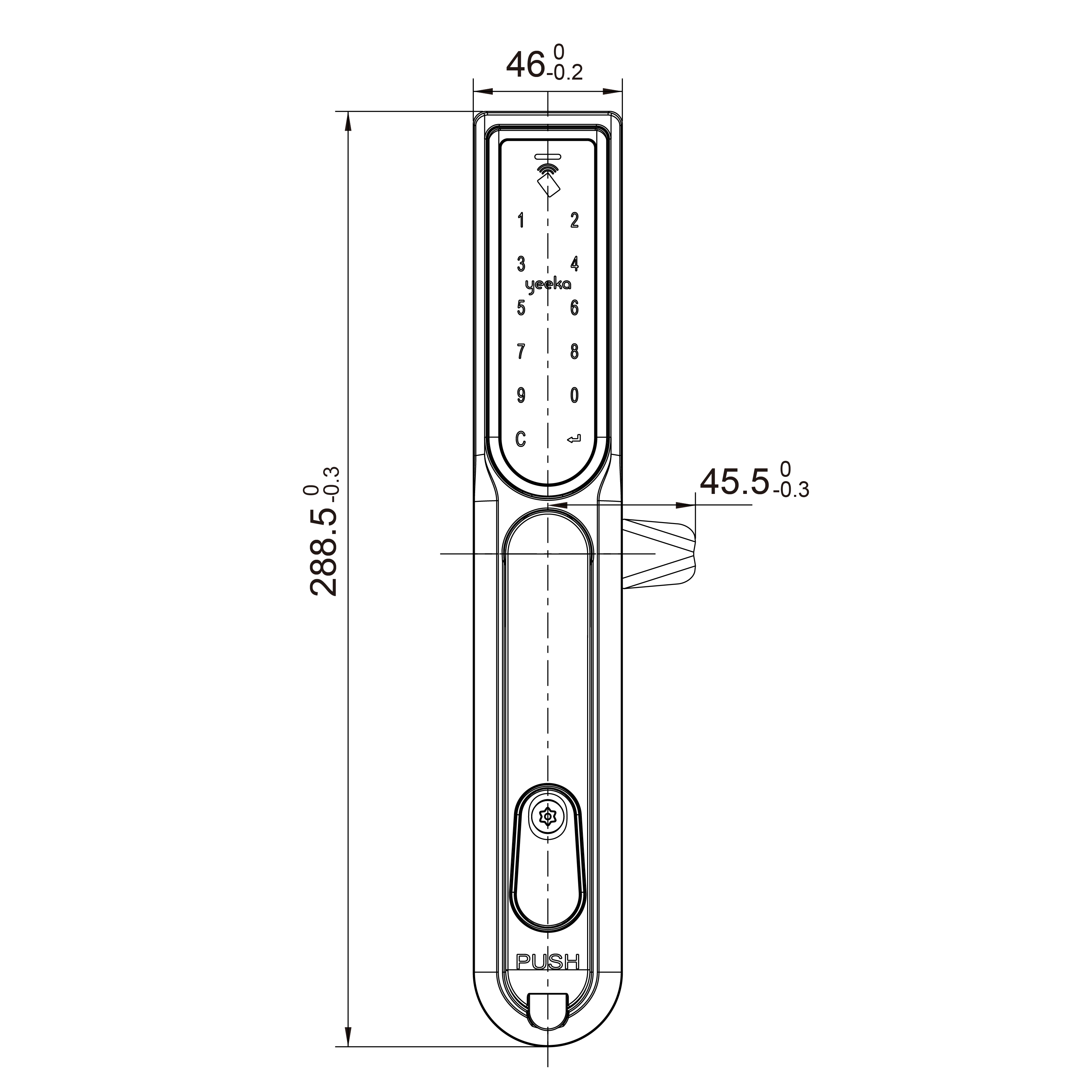

1518-R206-A20 series electronic swinghandle product datasheet
| Part Number | 开启方式名称表 | |
|---|---|---|
|
1518-R206-A20 | Mechanical key Remote control Password Card |
Accessories
There are currently no optional accessories available
Associated Products
Comment And Advice
Welcome your suggestions for improvement of yeeka products. We value every customer's feedback and try our best to meet your needs and expectations. Work together to creat better products together.
