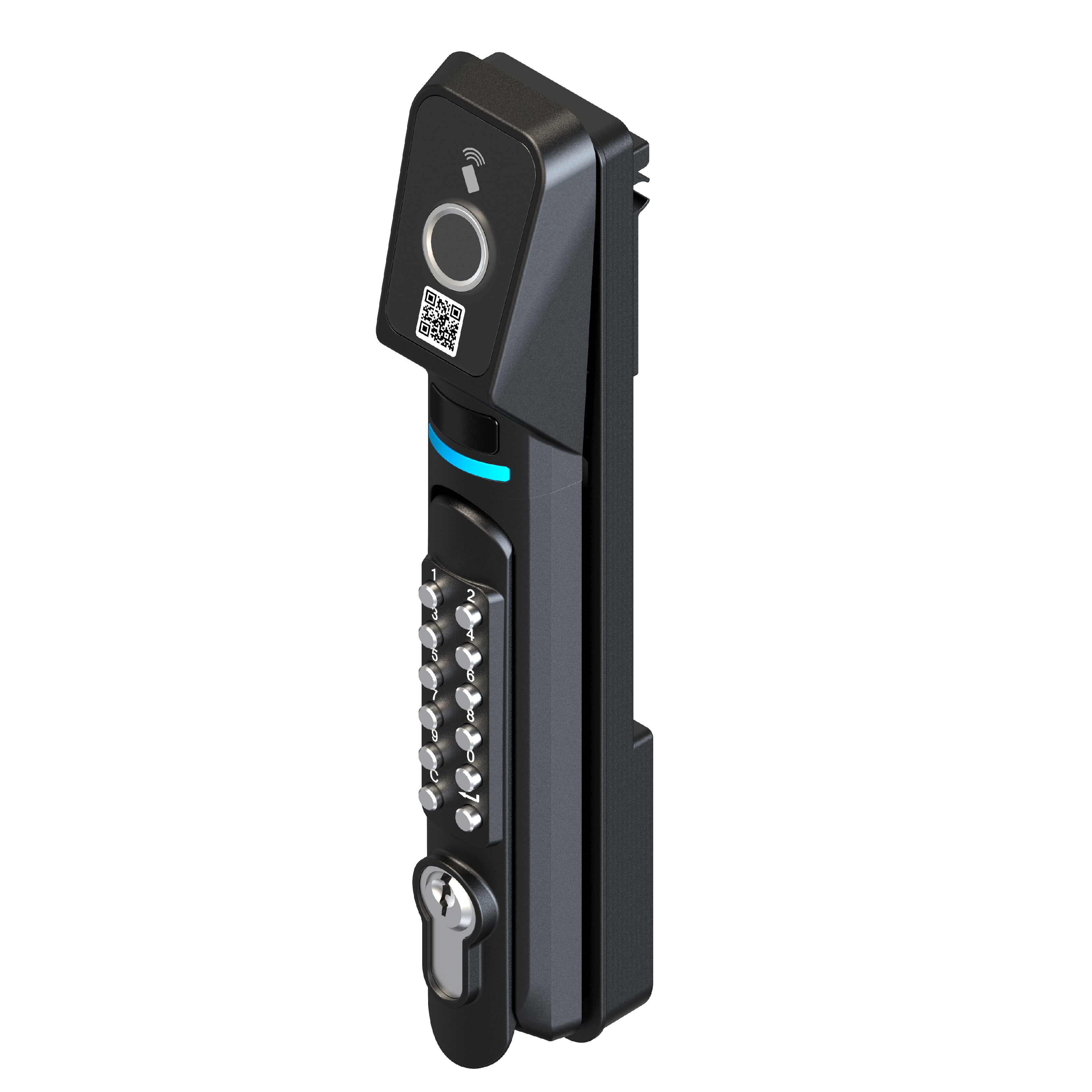

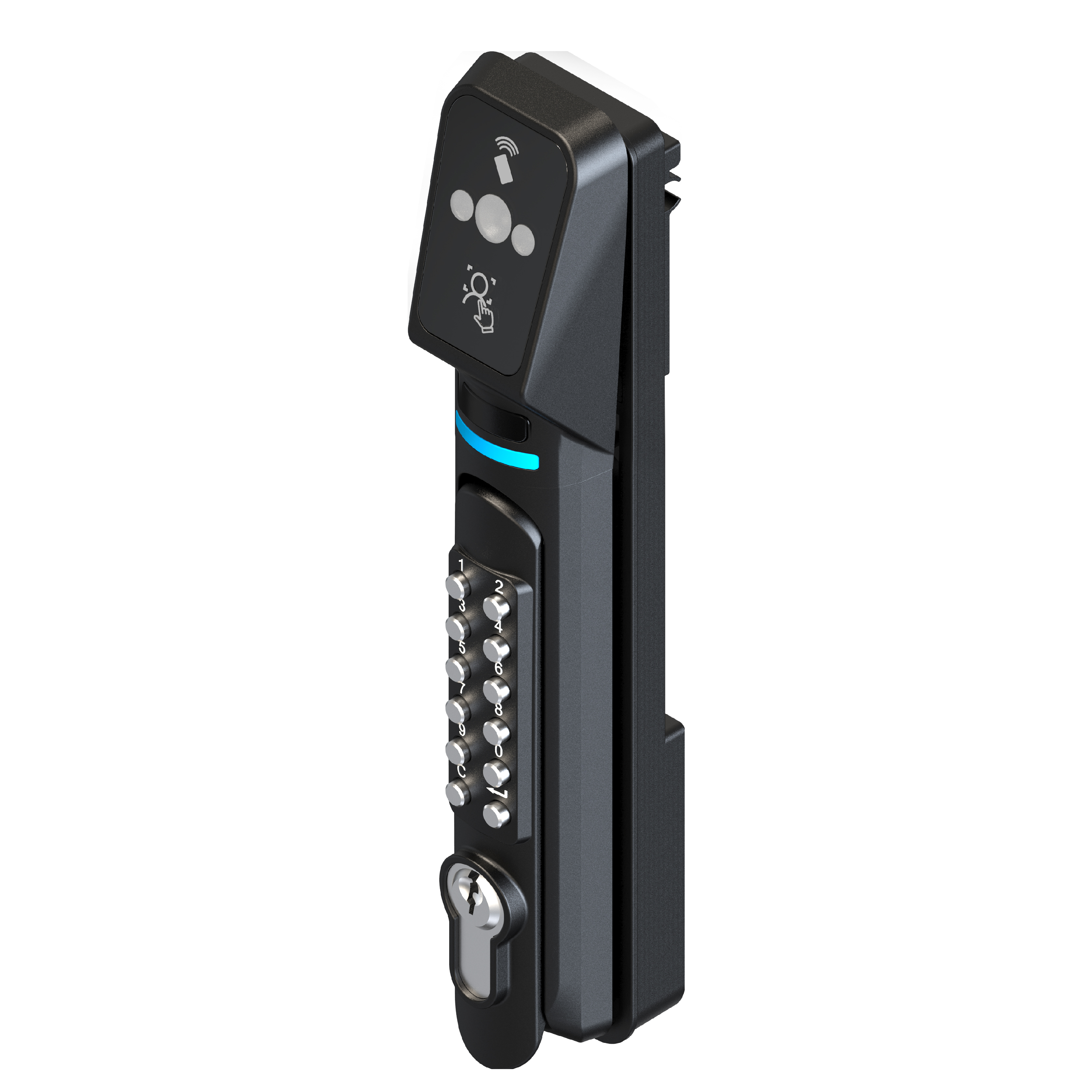

1527 Series Electronic Swinghandle
Indoor Application,Indoor IoT Lock,Electronic Access Control Swinghandle,Data Center Electronic Swinghandle,Indoor Electronic Swinghandle,1527-R224-20,1527-R227-20,1527-R233-20
- Working Voltage： DC 12V
- Communication Method： RS485

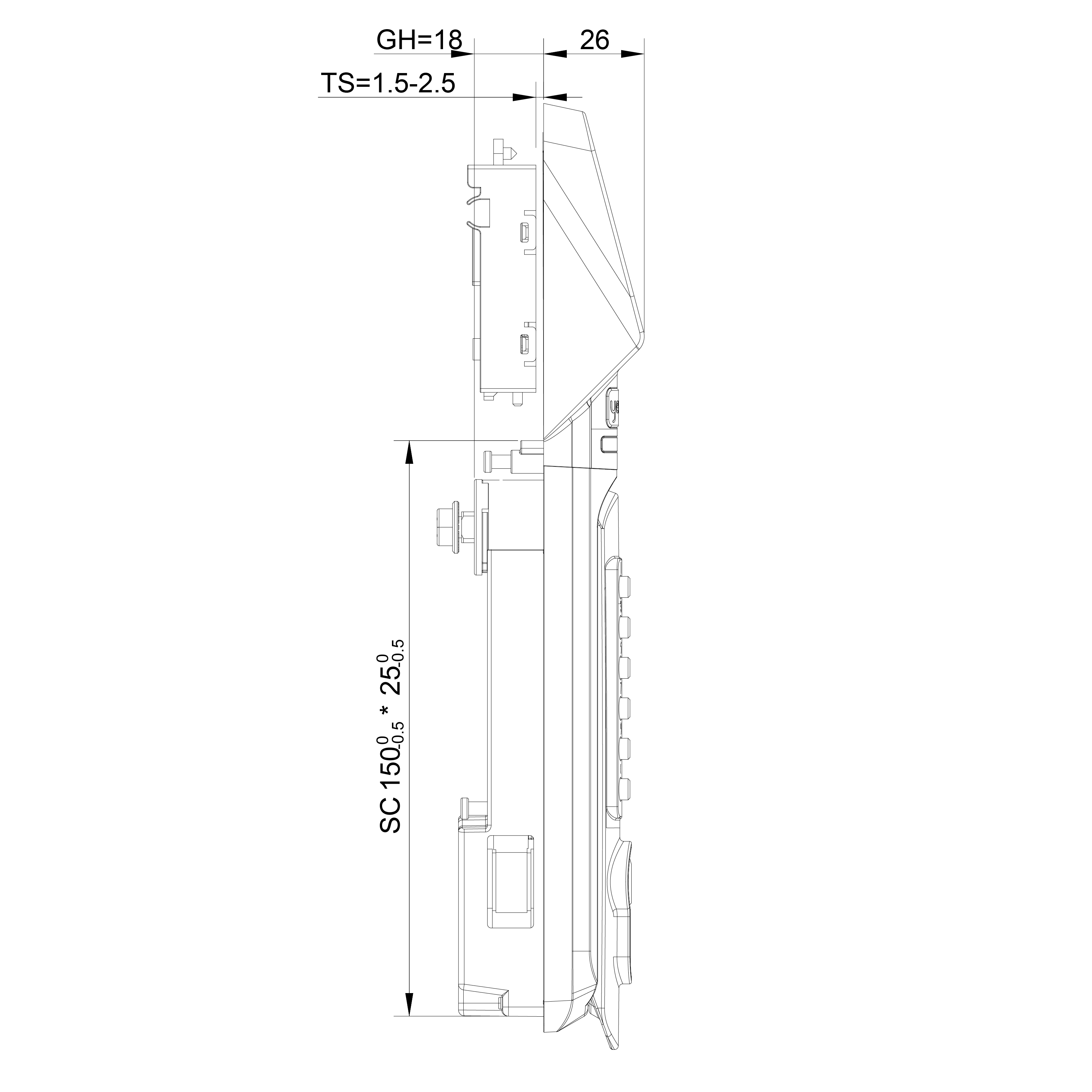

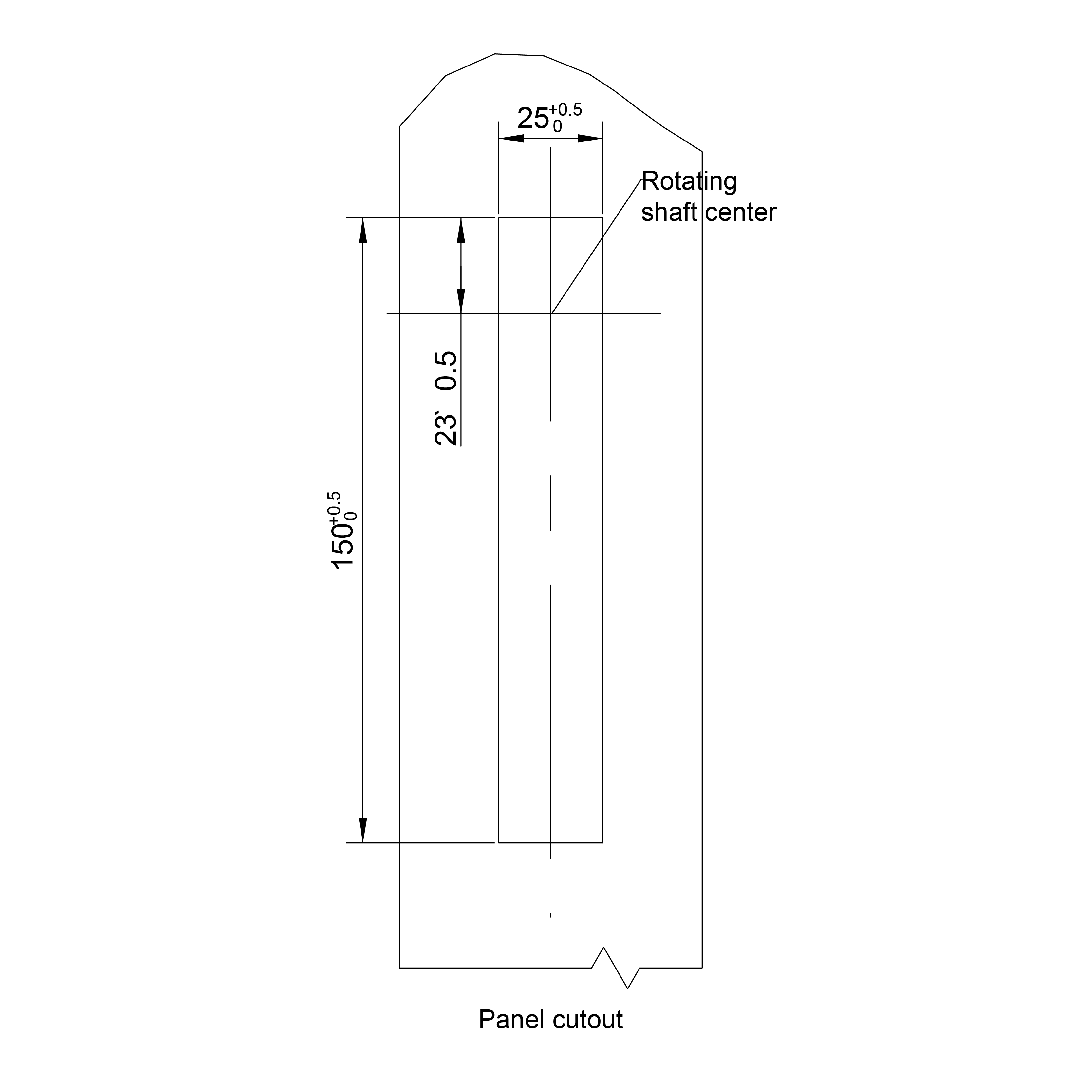

- Panel Cutout： 25*150 、 Float installation on request
- Locking Type： Cam Control
- IP Rating： IP40
-
Finish：
Zinc die handle: Black textured powder coated
Zinc die base: Black textured powder coated
- Multiple access method for your choice
- Visual representation of lock status
- Digital recording of unlocking history
- Zinc die Handle
- Zinc die Base
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet
1527 series electronic swinghandle product datasheet
| Part Number | 开启方式名称表 | |
|---|---|---|
|

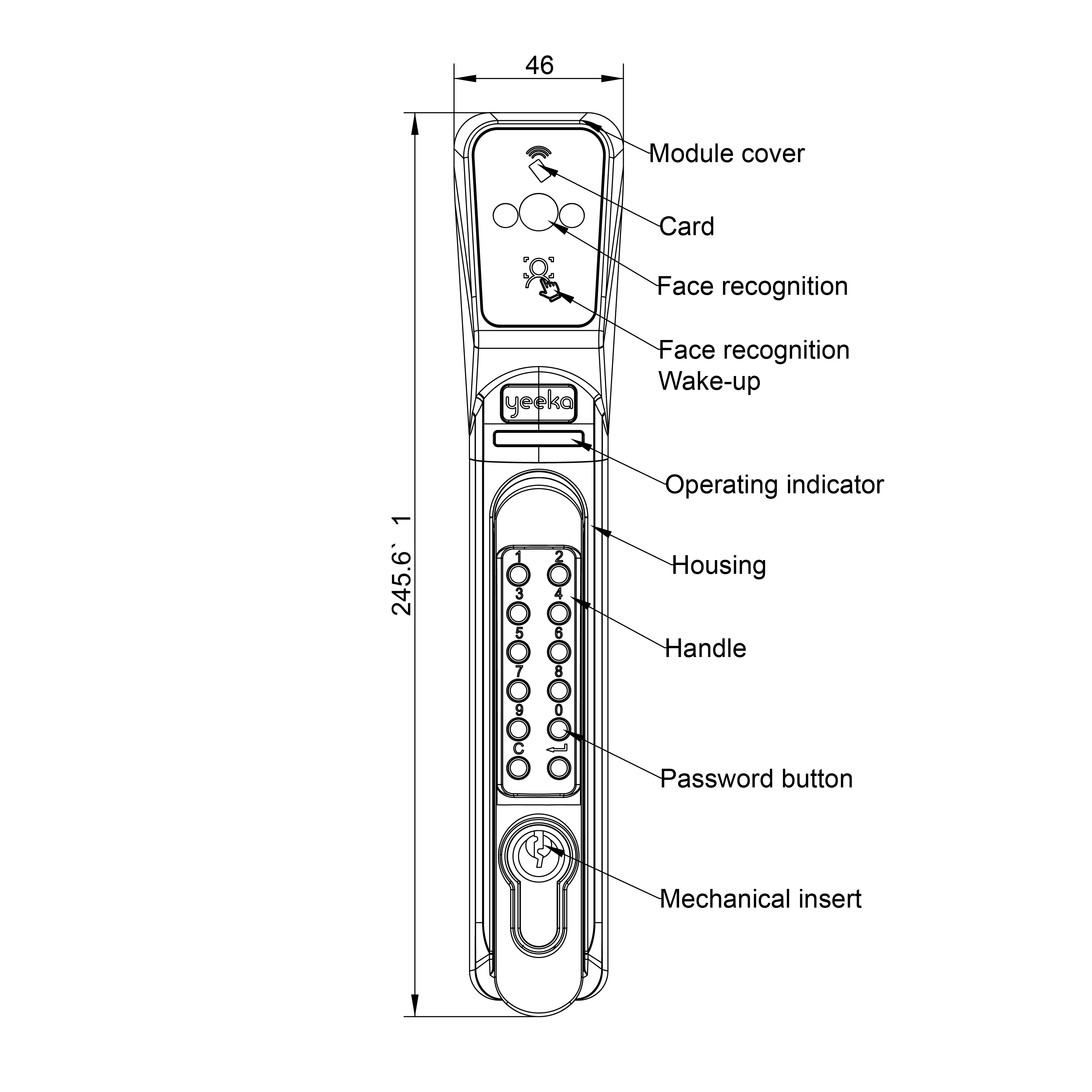

1527-R224-20 | Mechanical key Remote control Password Face Recognition |
|
|
1527-R227-20 | Mechanical key Remote control Password Card Face Recognition |
|
|

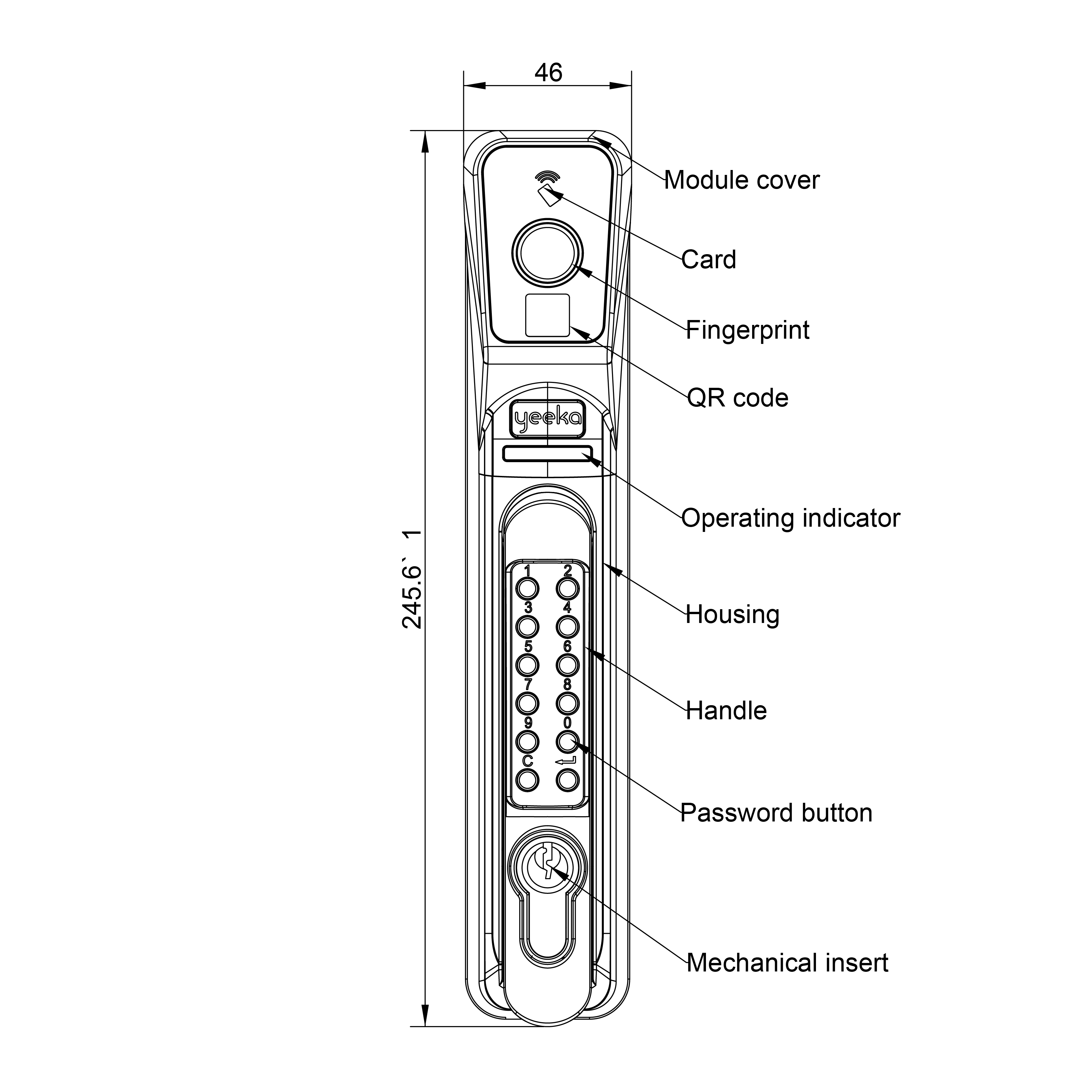

1527-R233-20 | Mechanical key Remote control Password Card Fingerprint Bluetooth |
Accessories
There are currently no optional accessories available
