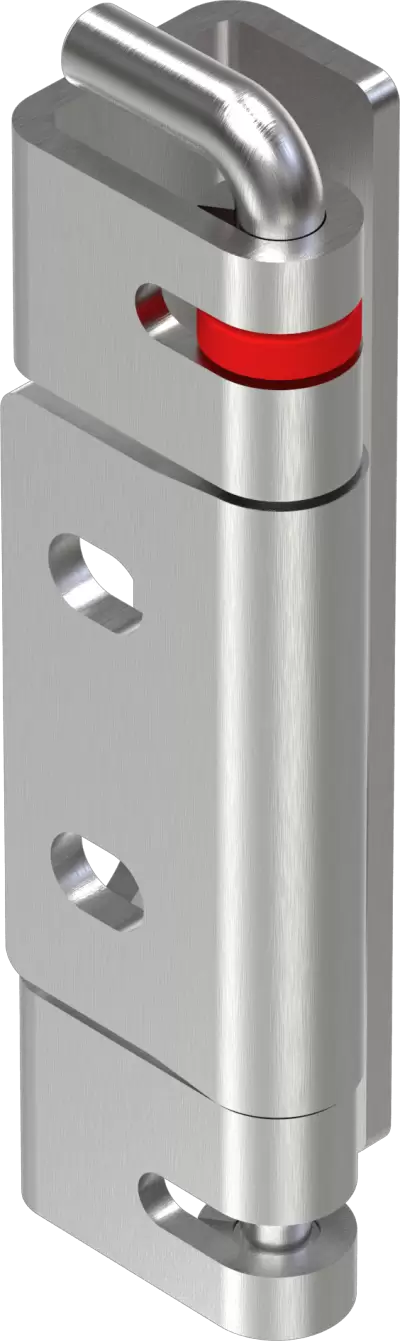

Concealed Hinge 2408-03 Series
Concealed Hinge,2408-03-304,2408-03-01
-
Finish：
Zinc plated
- Detachable installation
- Left-Right Interchangeable, Convenient Replacement
- Easy installation with screws/nuts
- Concealed installation
- Door Part/Frame part:Q235/Stainless steel 304
- Pin:Q235/Stainless steel 304
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

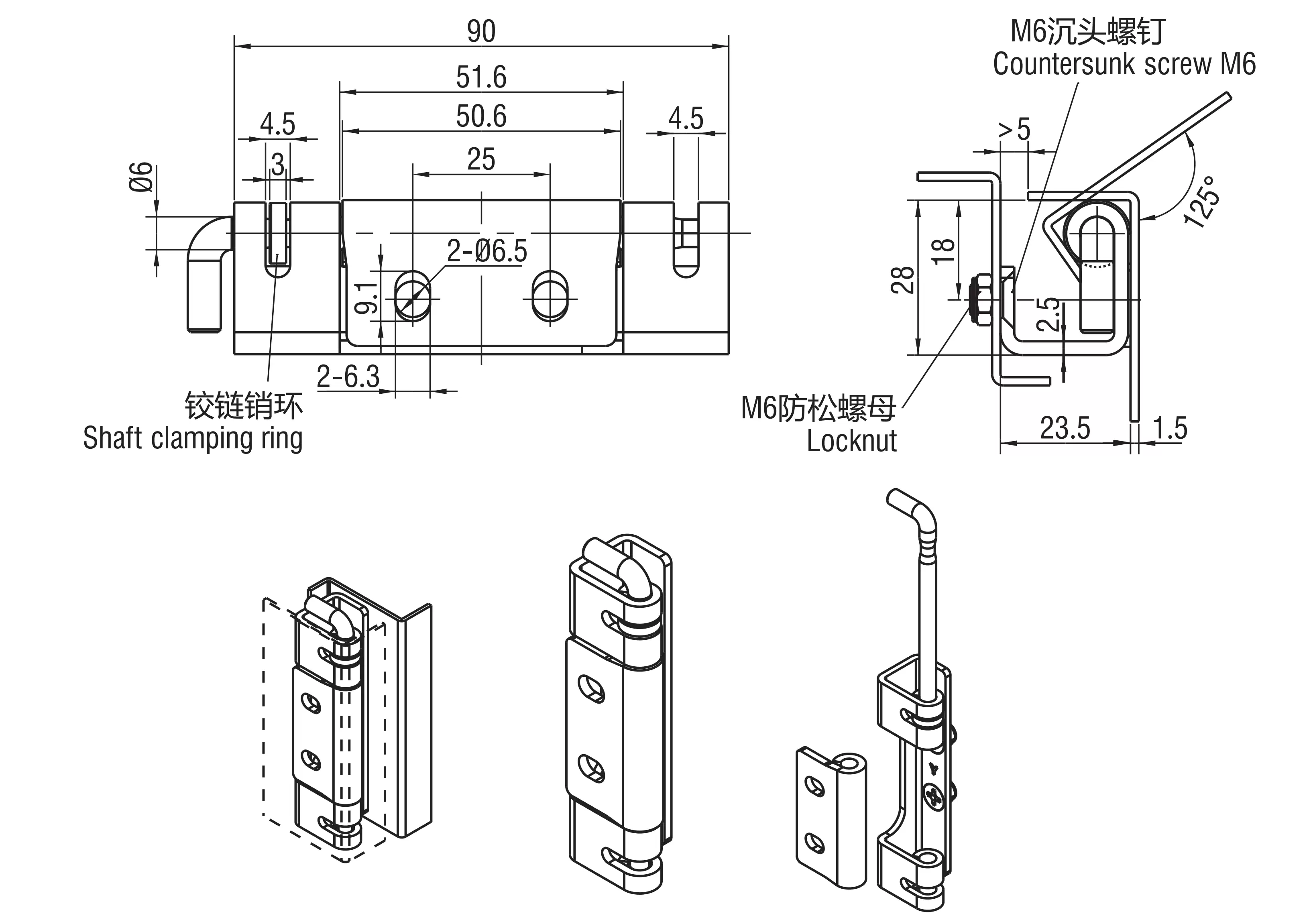

Concealed Hinge 2408-03 Series Product Data Sheet
| Part Number | Material | |
|---|---|---|
|
2408-03-01 | Q235 |
|
|
2408-03-304 | Stainless steel 304 |
Accessories
There are currently no optional accessories available
