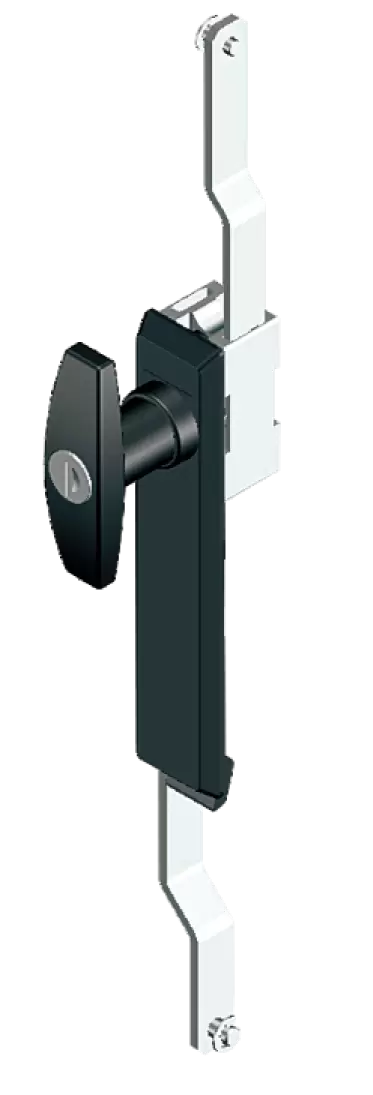

Rod Control Swinghandle 1123 Large Rod Control Type Series
Swinghandle,Rod control lock,Mutipoint lock,Three points lock,1123-2000-L190,1123-2000-L290,1123-2000-L390,1123-2001-L190,1123-2001-L290,1123-2001-L390,1123-3000-L190,1123-3001-L190,1123-3000-L290,1123-3001-L290,1123-3001-L390,1123-3000-L390
- Panel Cutout： 25*50*50*50
- Installation Mode： Screw on
- Locking Type： Rod Control
- IP Rating： IP65
-
Finish：
Black Matte Powder Coated
- Handle operation, convenient and quick
- Keyed Access, Anti-theft
- Left-Right Interchangeable, Convenient Replacement
- Various keys on request
- Sealed against water and dust
- Multiple-points locking
- Housing:PA6
- Handle:Zinc die
- Rod Control:Stainless steel 304
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

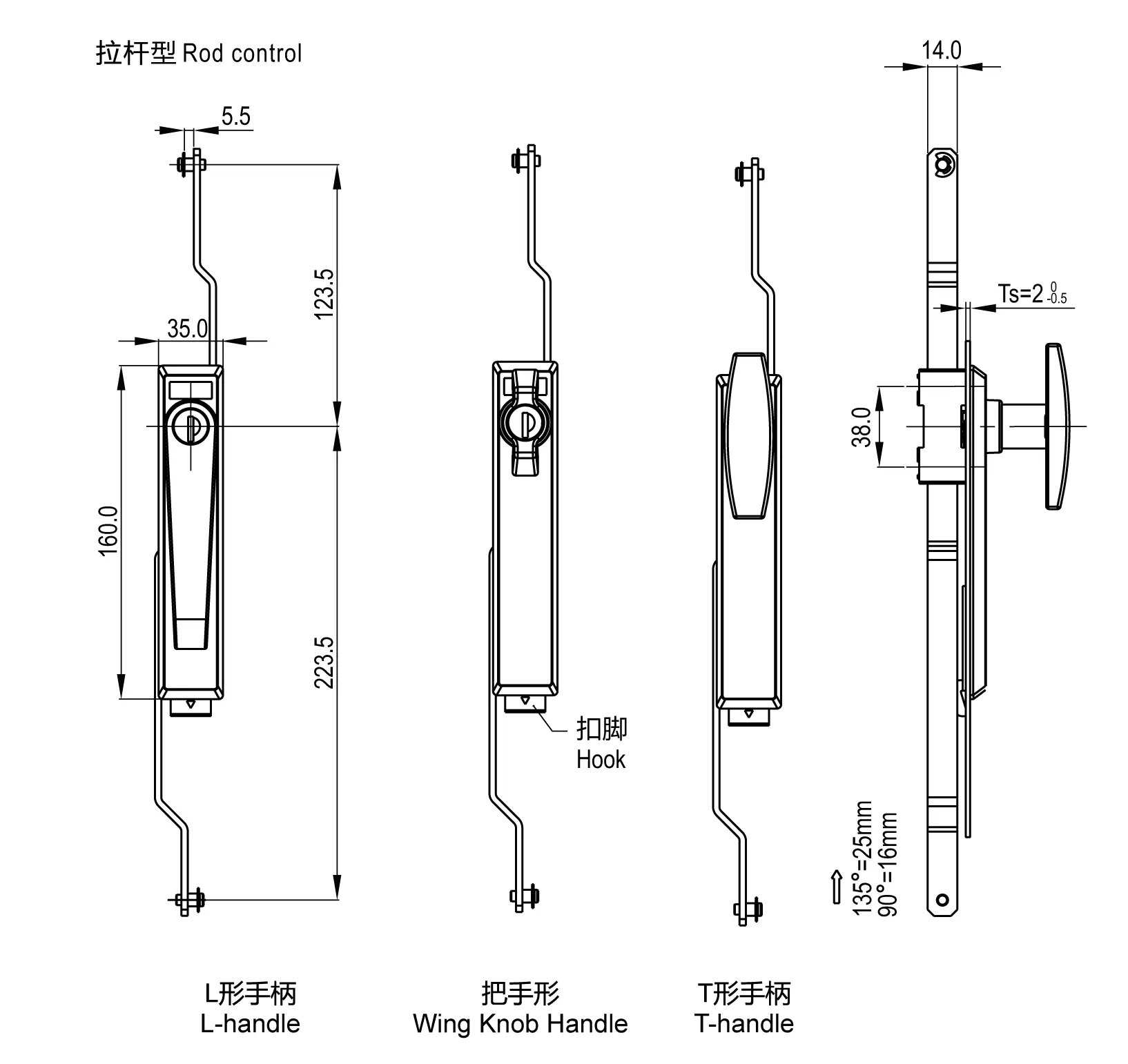

Rod Control Swinghandle 1123 Large Two Point Rod Control Series Product Data Sheet
| Part Number | Insert Type | Handle Type | |
|---|---|---|---|
|
1123-2000-L190 | Non-locking | T-handle |
|
|
1123-2000-L290 | Non-locking | L-handle |
|
|
1123-2000-L390 | Non-locking | Wing Knob |
|
|
1123-2001-L190 | Key Locking | T-handle |
|
|
1123-2001-L290 | Key Locking | L-handle |
|
|
1123-2001-L390 | Key Locking | Wing Knob |
Rod Control Swinghandle 1123 Large Three Point Rod Control Series Product Data Sheet
| Part Number | Insert Type | Handle Type | |
|---|---|---|---|
|
|
1123-3000-L190 | Non-locking | T-handle |
|
|
1123-3000-L290 | Non-locking | L-handle |
|
|
1123-3000-L390 | Non-locking | Wing Knob |
|
|
1123-3001-L190 | Key Locking | T-handle |
|
|
1123-3001-L290 | Key Locking | L-handle |
|
|
1123-3001-L390 | Key Locking | Wing Knob |
