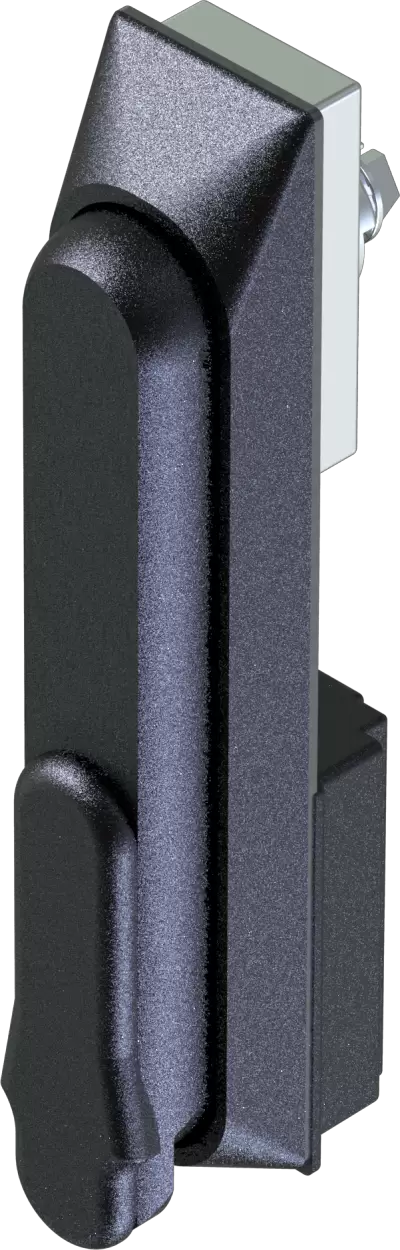

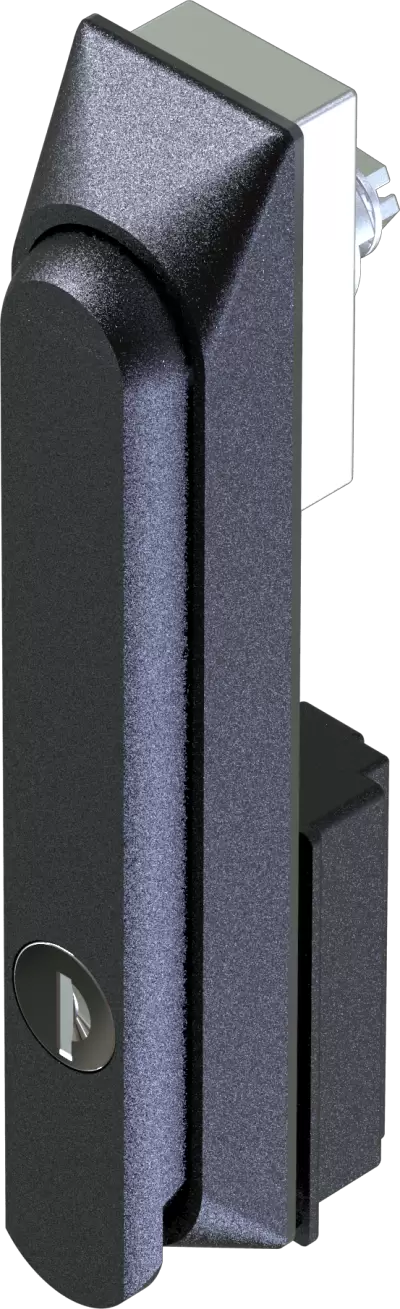

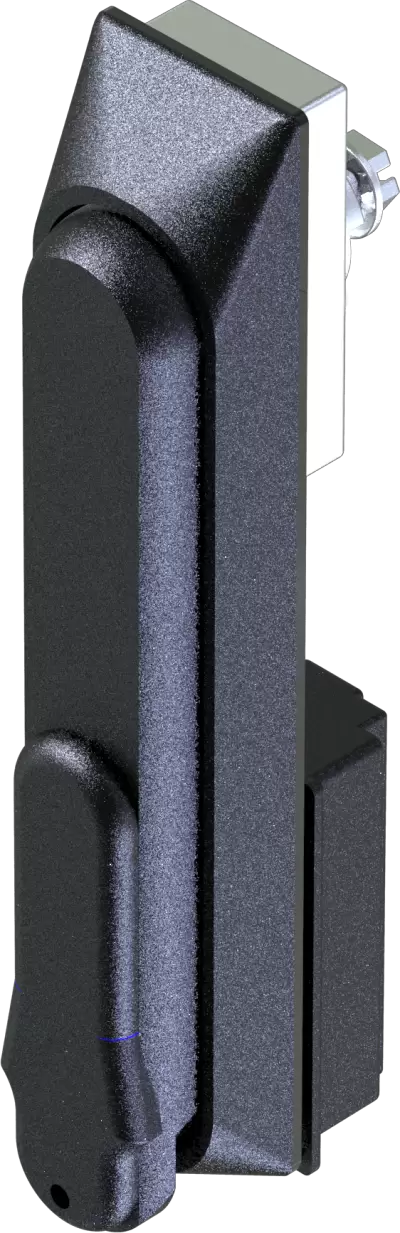

Swinghandle 1101 Cam Type Series
Swinghandle,Rod control lock,Mutipoint lock,Three points lock,1101-1001-C,1101-1001-NC,1101-1P01-C,1101-1P01-NC,1101-1P02-C,1101-1P02-NC,1101-1P03-C,1101-1P03-NC,1101-1P04-C,1101-1P04-NC
- Panel Cutout： 25*50*50*50
- Installation Mode： Screw on
- Locking Type： Cam Control
- IP Rating： IP54
- Sealed against water and dust
- Keyed Access, Anti-theft
- Left-Right Interchangeable, Convenient Replacement
- Various keys on request
- Padlockable on request
- Handle operation, convenient and quick
- Euro profile cylinder
- Multiple-points locking
- Housing:PA6GF30
- Handle:PA6GF30/PA66
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet

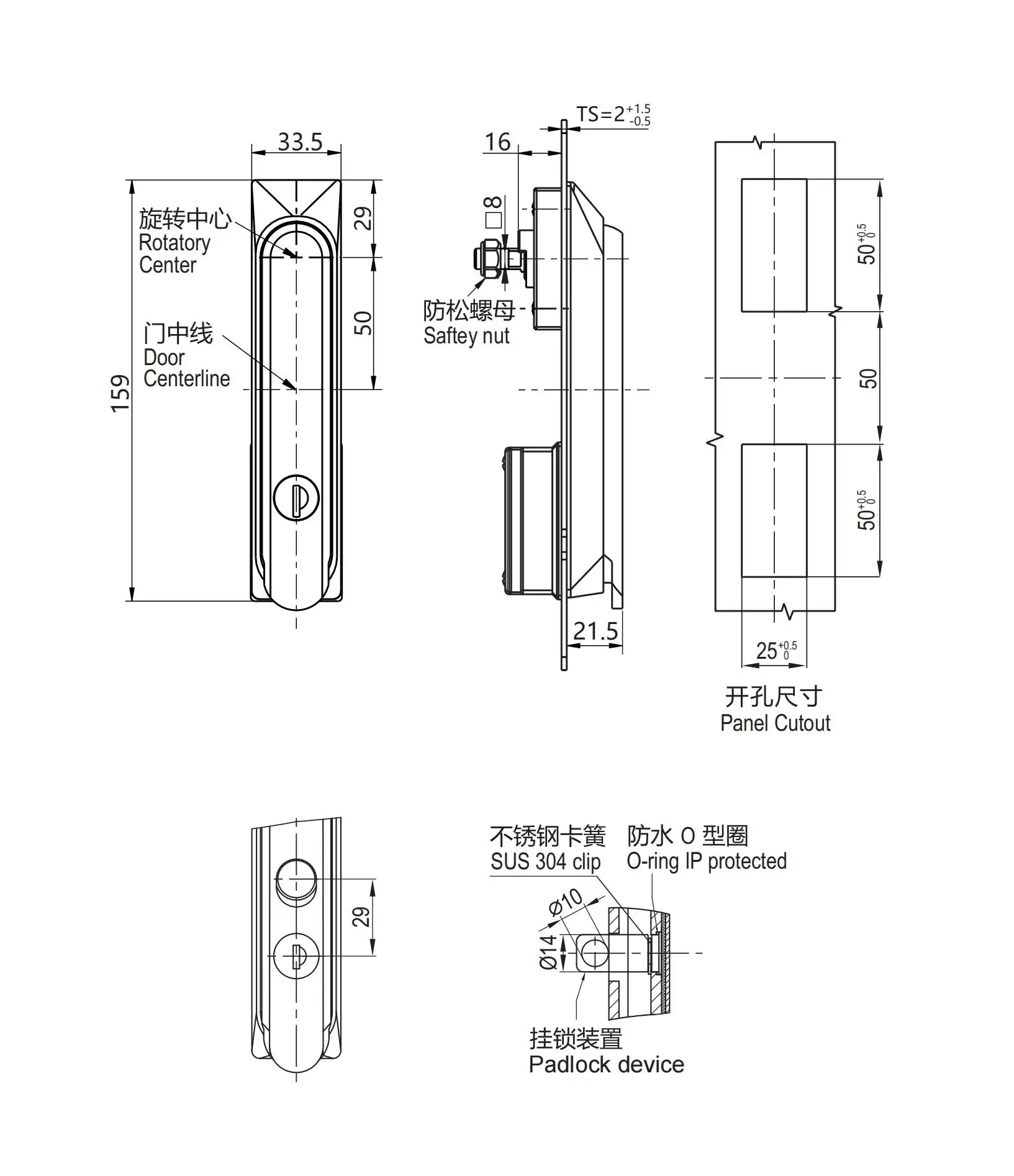

Swinghandle 1101 Cam Type Series Round Cylinder Product Data Sheet
| Part Number | Insert Type | With/Without Dust Cap | |
|---|---|---|---|
|
1101-1001-C | YK333 Cylinder | With |
|
|
1101-1001-NC | YK333 Cylinder | Without |

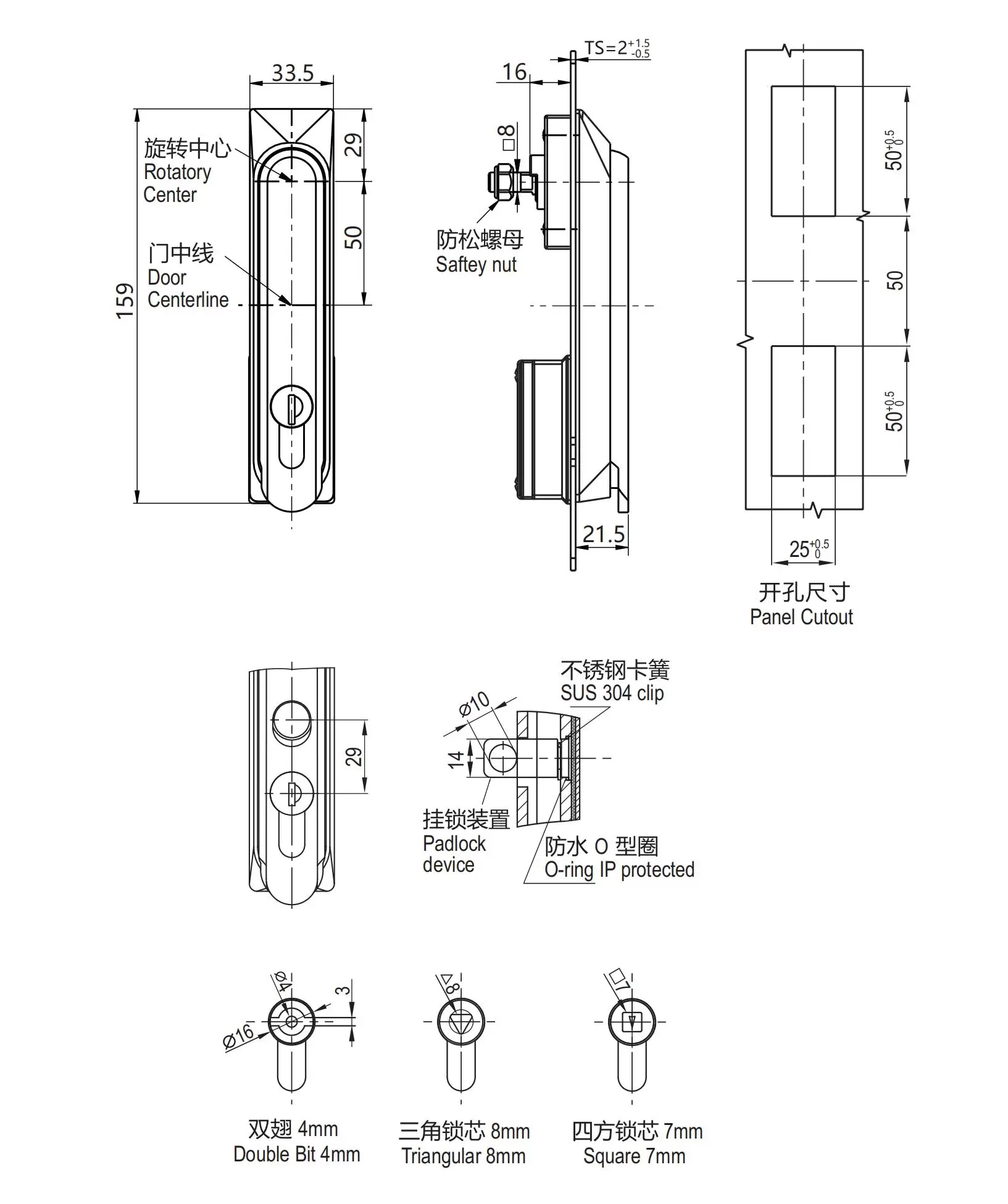

Swinghandle 1101 Cam Type Series Euro Cylinder Product Data Sheet
| Part Number | Insert Type | With/Without Dust Cap | |
|---|---|---|---|
|
|
1101-1P01-C | YK333 Cylinder | With |
|
|
1101-1P01-NC | YK333 Cylinder | Without |
|
|
1101-1P02-C | Double bit 4mm | With |
|
|
1101-1P02-NC | Double bit 4mm | Without |
|
|
1101-1P03-C | Square 7mm | With |
|
|
1101-1P03-NC | Square 7mm | Without |
|
|
1101-1P04-C | Triangular 8mm | With |
|
|
1101-1P04-NC | Triangular 8mm | Without |
