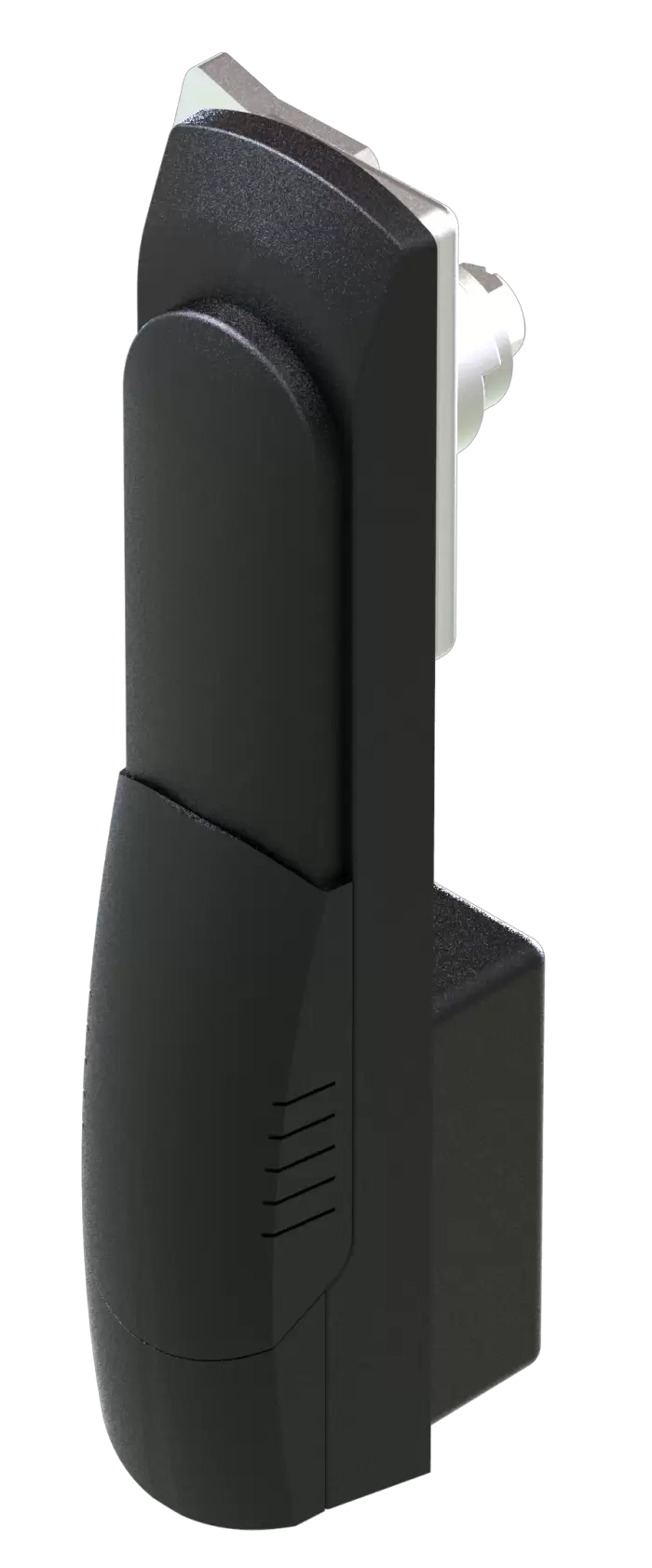

Swinghandle 1116 Cam Type Series
Swinghandle,Rod control lock,Mutipoint lock,Three points lock,1116-1001-C,1116-1011-C

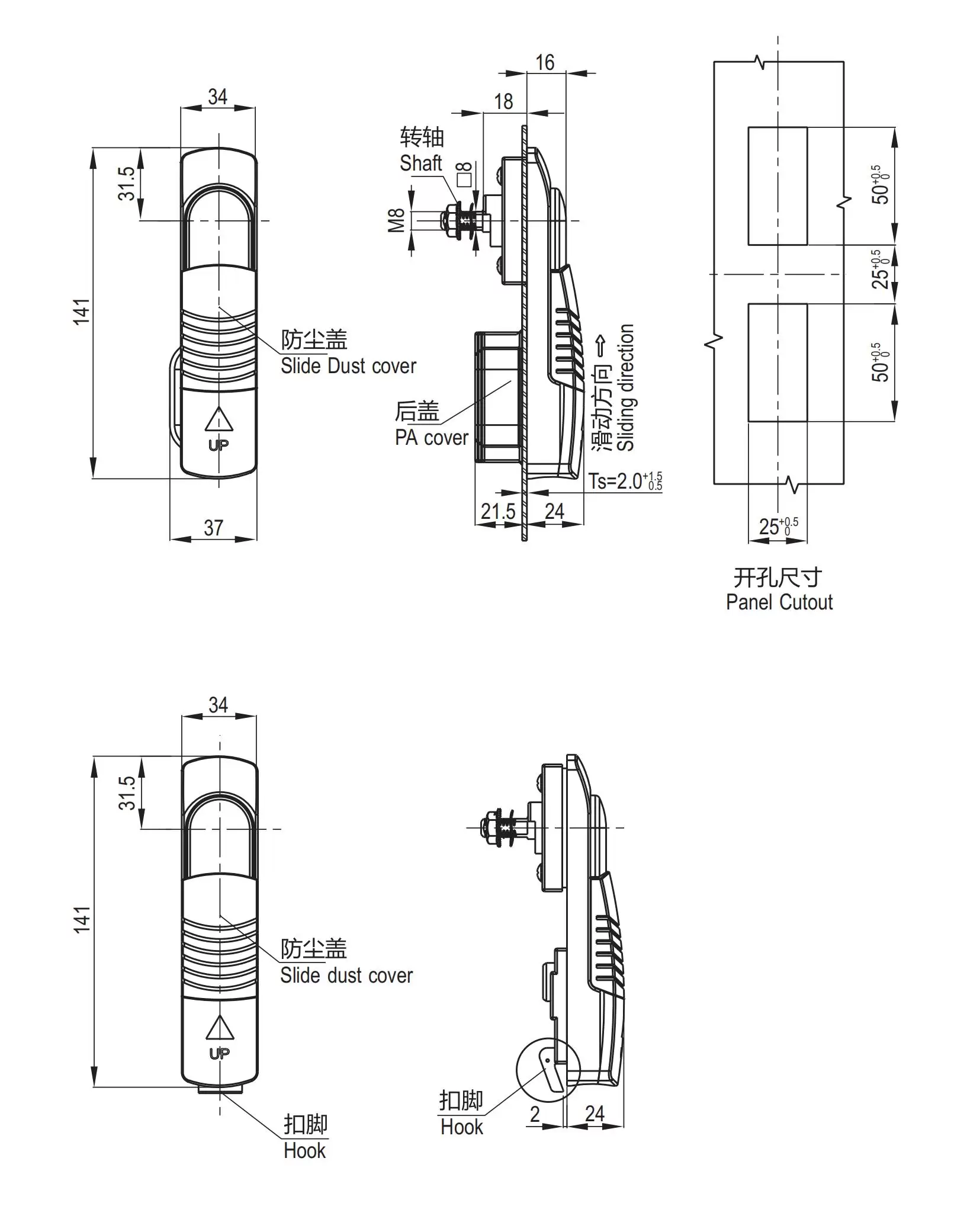

- Panel Cutout： 25*50*50*50
- Installation Mode： Snap-in fitted 、 Screw on
- Locking Type： Cam Control
- IP Rating： IP65
- Handle operation, convenient and quick
- Keyed Access, Anti-theft
- Left-Right Interchangeable, Convenient Replacement
- Push to Lock Without Key
- Button pops open for easy operation
- Padlockable on request
- Housing,Handle:PA6
KEY FEATURES
MATERIAL
- Data Sheet
- Accessories
- Associated Products
- Comment And Advice
Data Sheet
Swinghandle 1116 Cam Series Product Data Sheet
| Part Number | Installation Mode | |
|---|---|---|
|
1116-1001-C | Screw on |
|
|
1116-1011-C | Snap-in fitted |
