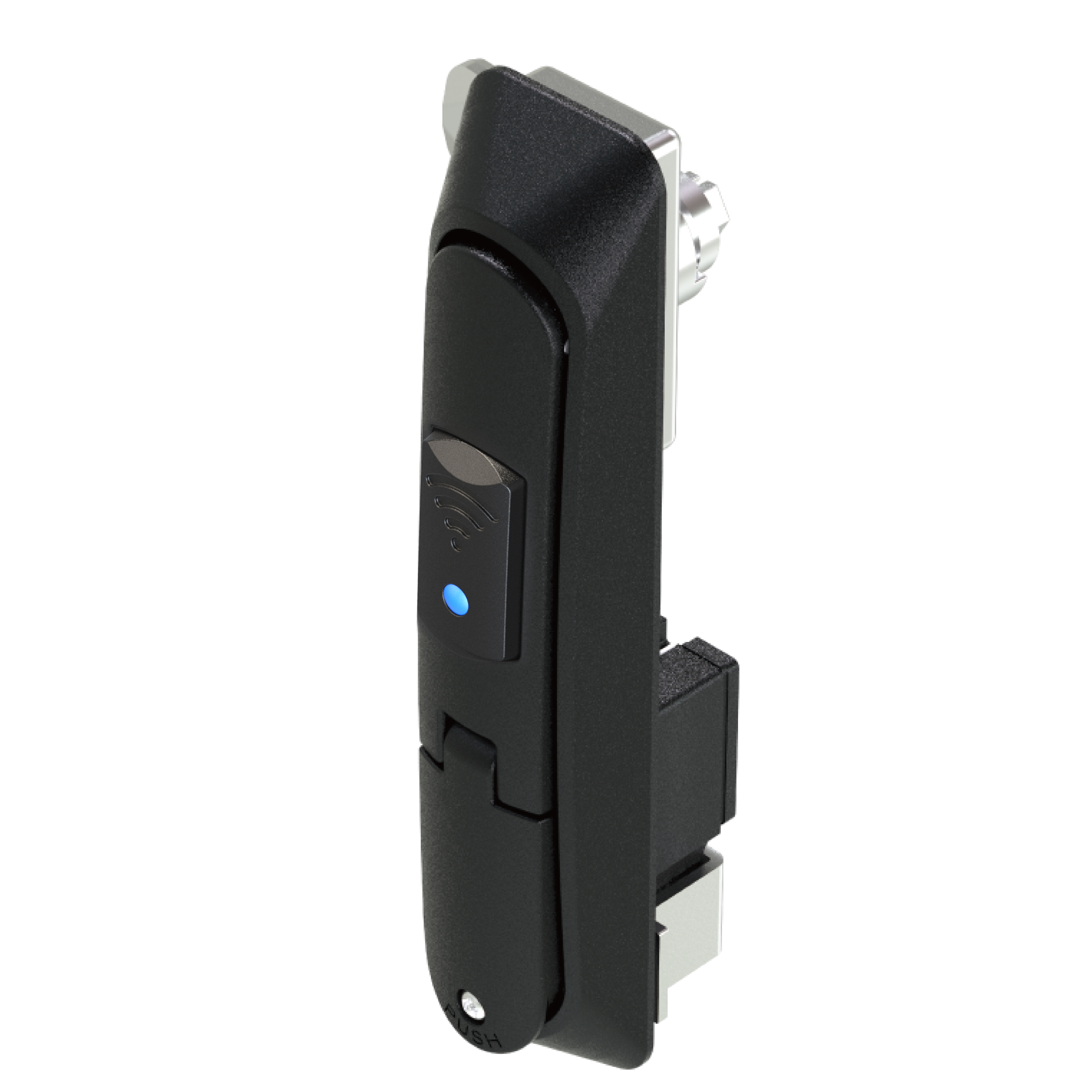

1511 Series Electronic Swinghandle

Outdoor Application,Outdoor IoT Lock,Telecom Electronic Swinghandle,Outdoor Electronic Swinghandle,1511-116-20(Cam Version),1511-116-20.DO,1511-216-20(Rod Control Version),1511-216-20.DO,1511-1126-20(Cam Version),1511-1136-20(Cam Version),1511-2126-20(Rod Control Version),1511-2136-20(Rod Control Version),1511-11236-20(Cam Version),1511-21236-20(Rod Control Version)

Working Voltage： DC 12V
Communication Method： RS485

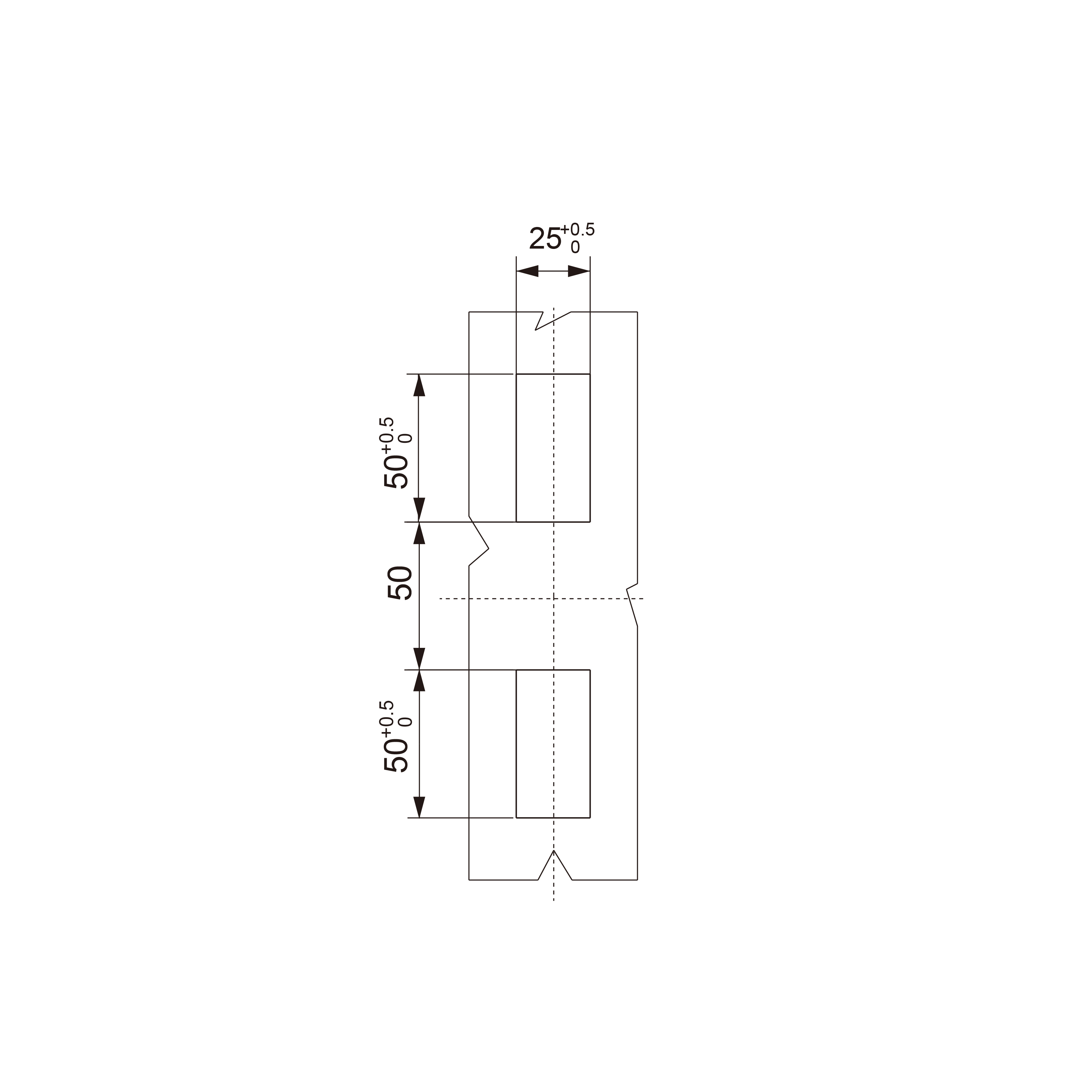

Panel Cutout： Dual 25X50 Cutout Size 、 25*50*50*50
Locking Type： Cam Control 、 Rod Control 、 Cam locking type
IP Rating： IP65
Finish： Zinc die base,Zinc die handle: Black textured powder coated

KEY FEATURES

Integrated audible and visual feedback functions

Higher IP Protection grade(IP65), with waterproof and dustproof

Made of zinc die, with high strength and durability

With DO, RS485, Wiegand communication protocol to meet different requirement

The whole lock is made of zinc alloy, with high strength and durability

Stable and reliable waterproof solenoid device

Integrated Card reader and Bluetooth function

MATERIAL

Zinc die Base

Zinc die Handle

Data Sheet
Accessories
Associated Products
Comment And Advice

Data Sheet

1511 series electronic swinghandle product datasheet

	Part Number	Access Method
	1511-116-20(Cam Version)	Mechanical key+Remote control
	1511-116-20.DO	Mechanical Key + Remote Control(DO)
	1511-216-20(Rod Control Version)	Mechanical key+Remote control
	1511-216-20.DO	Mechanical Key + Remote Control(DO)
	1511-1126-20(Cam Version)	Mechanical key+Remote control+Card
	1511-1136-20(Cam Version)	Mechanical key+Remote control+Bluetooth(scanning code)
	1511-2126-20(Rod Control Version)	Mechanical key+Remote control+Card
	1511-2136-20(Rod Control Version)	Mechanical key+Remote control+Bluetooth(scanning code)
	1511-11236-20(Cam Version)	Mechanical key+Remote control+Card+Bluetooth(scanning code)
	1511-21236-20(Rod Control Version)	Mechanical key+Remote control+Card+Bluetooth(scanning code)

Accessories

There are currently no optional accessories available

Associated Products

There are currently no associated products
